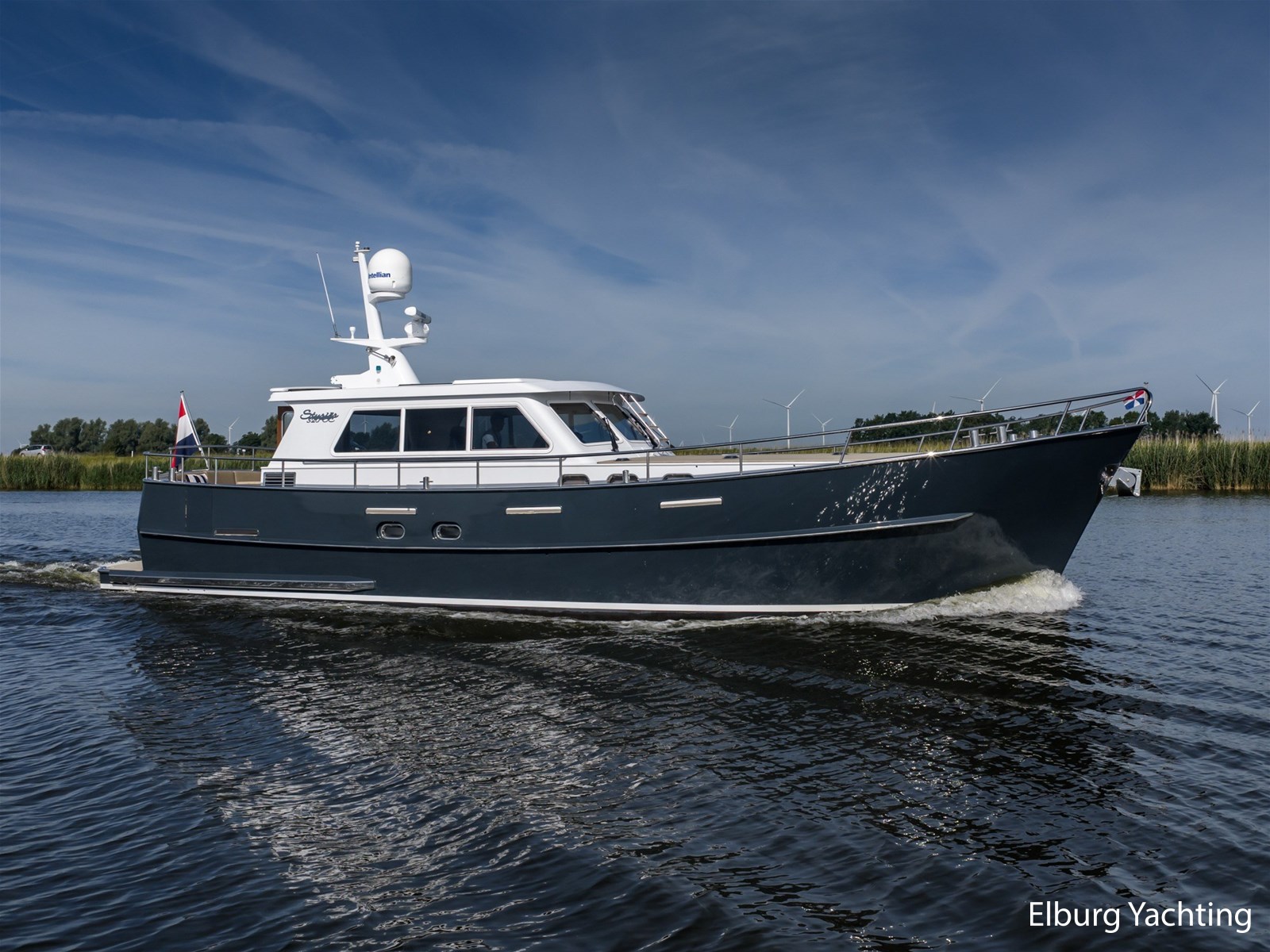

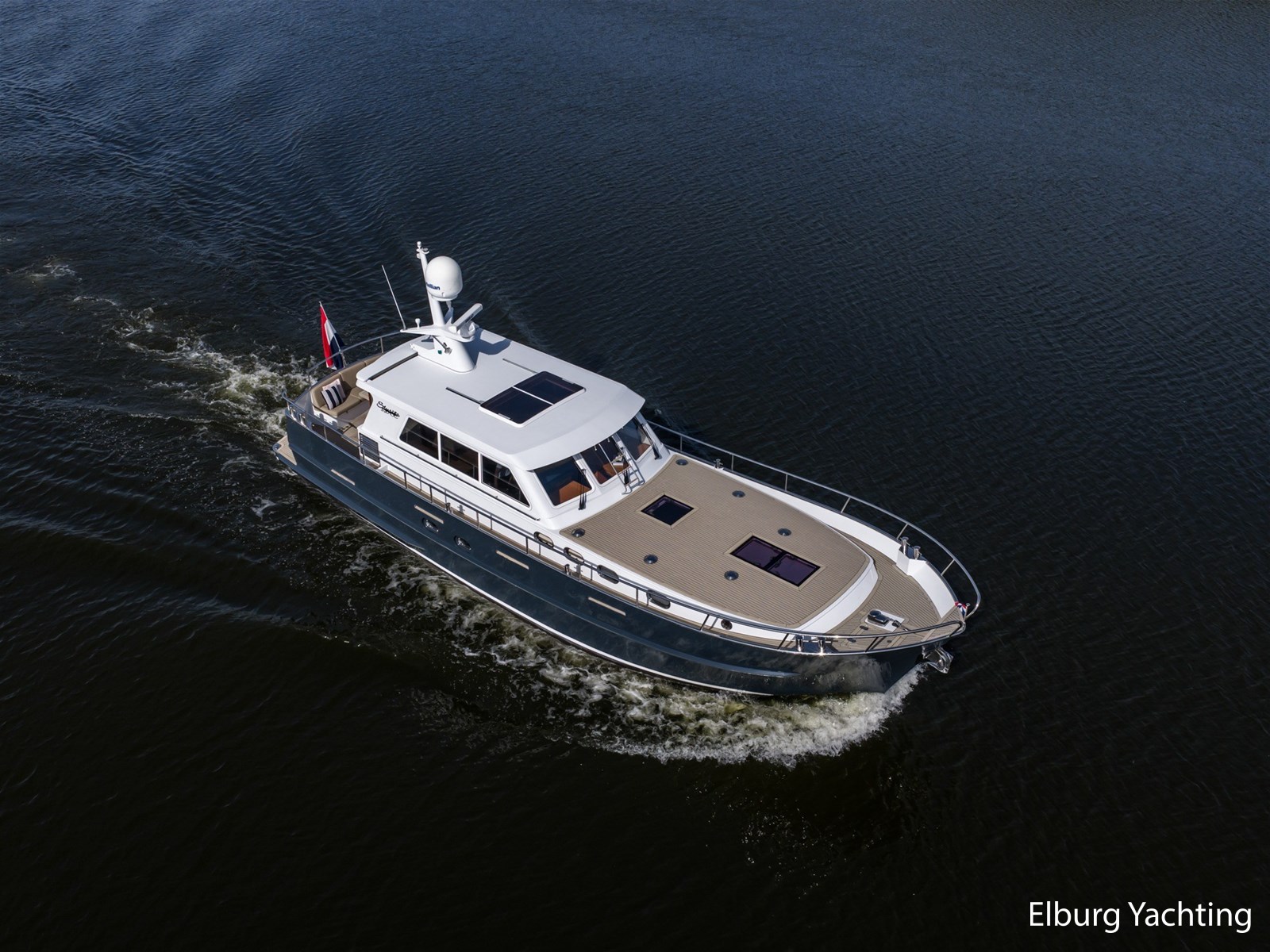

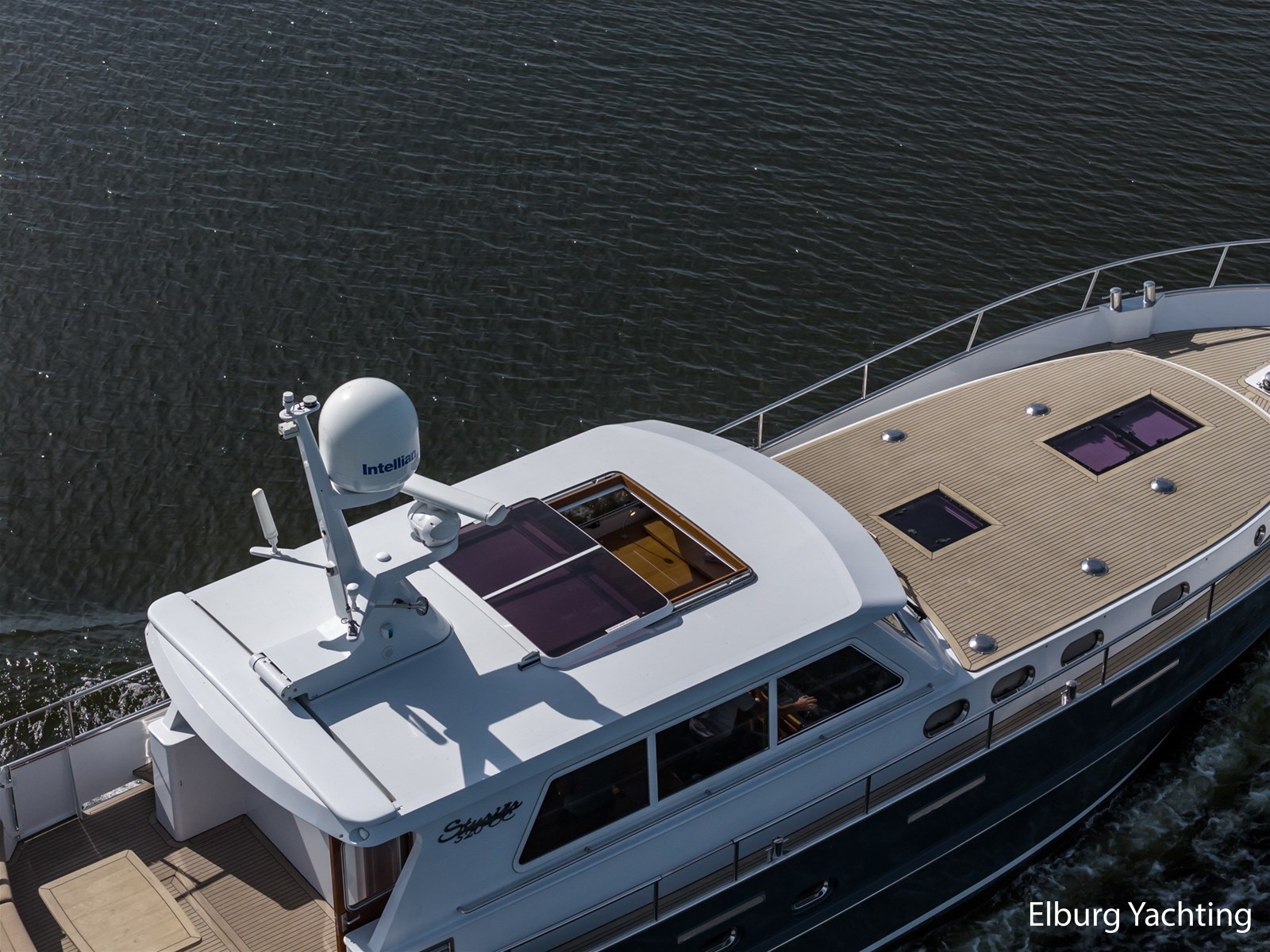

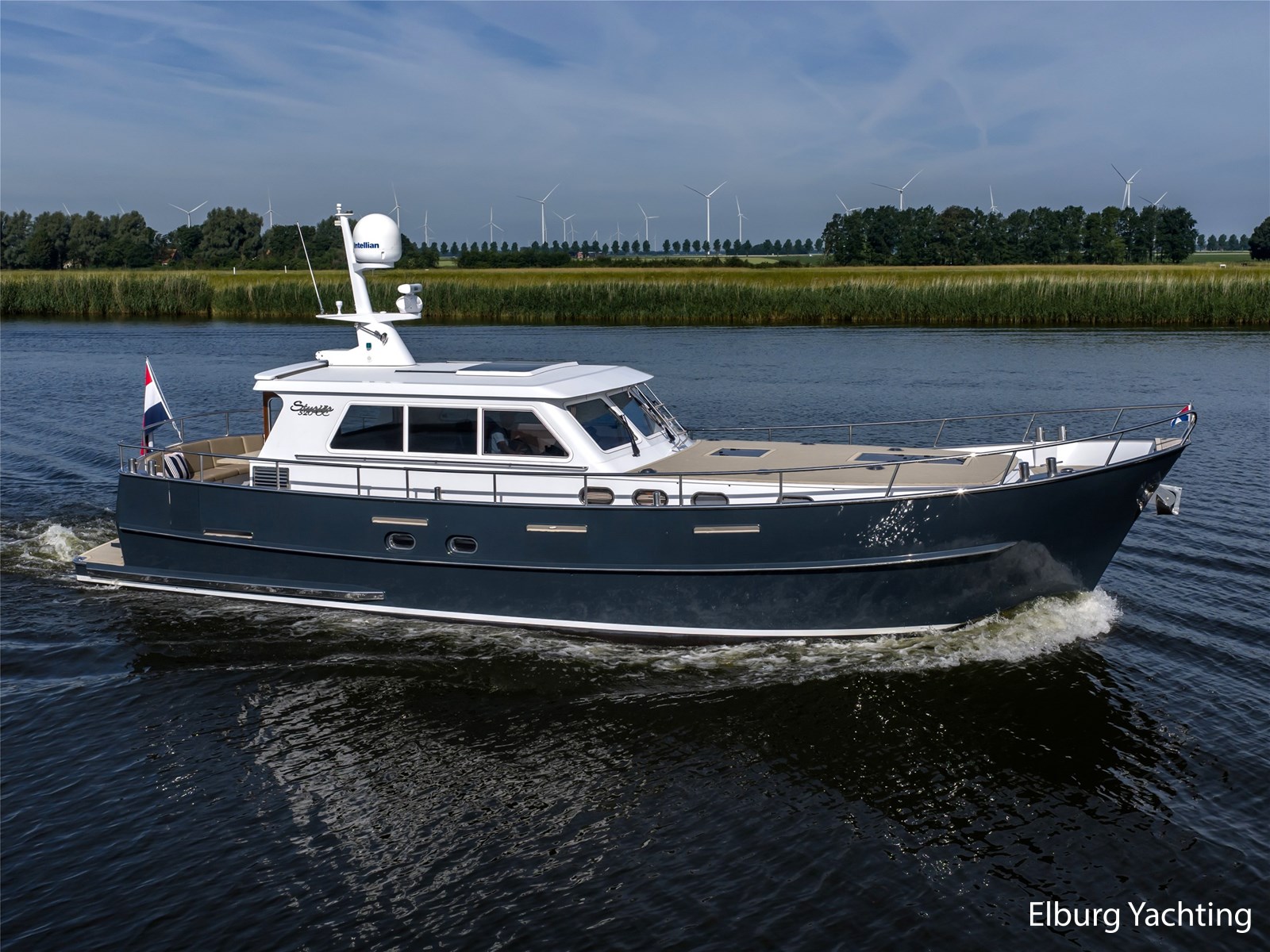

Sturier 520 OC - Stabilizers

Appr. 15.60 x 4.65 x 1.45 meter
Volharding - Stavoren
Volharding - Stavoren
2016
A

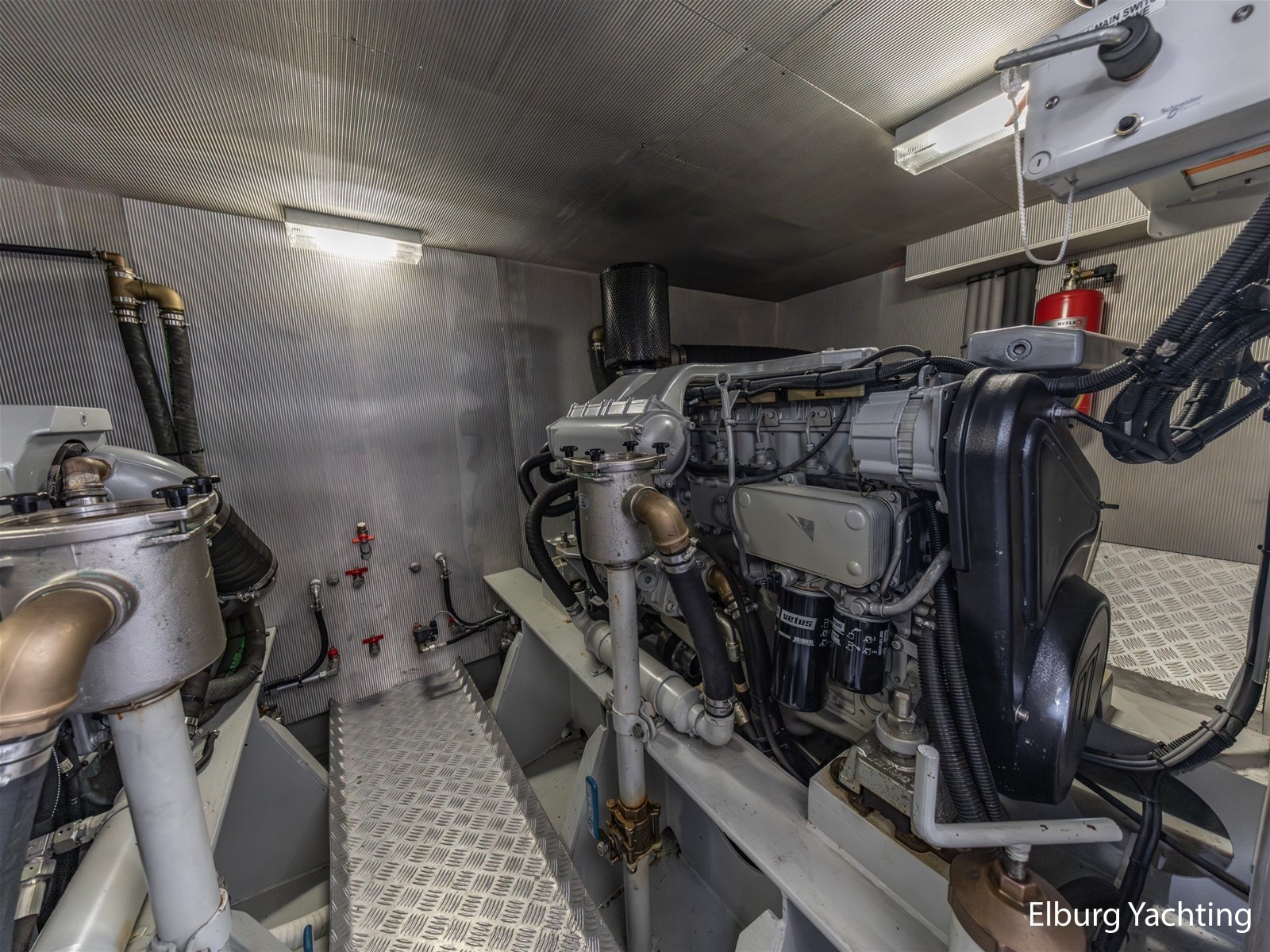

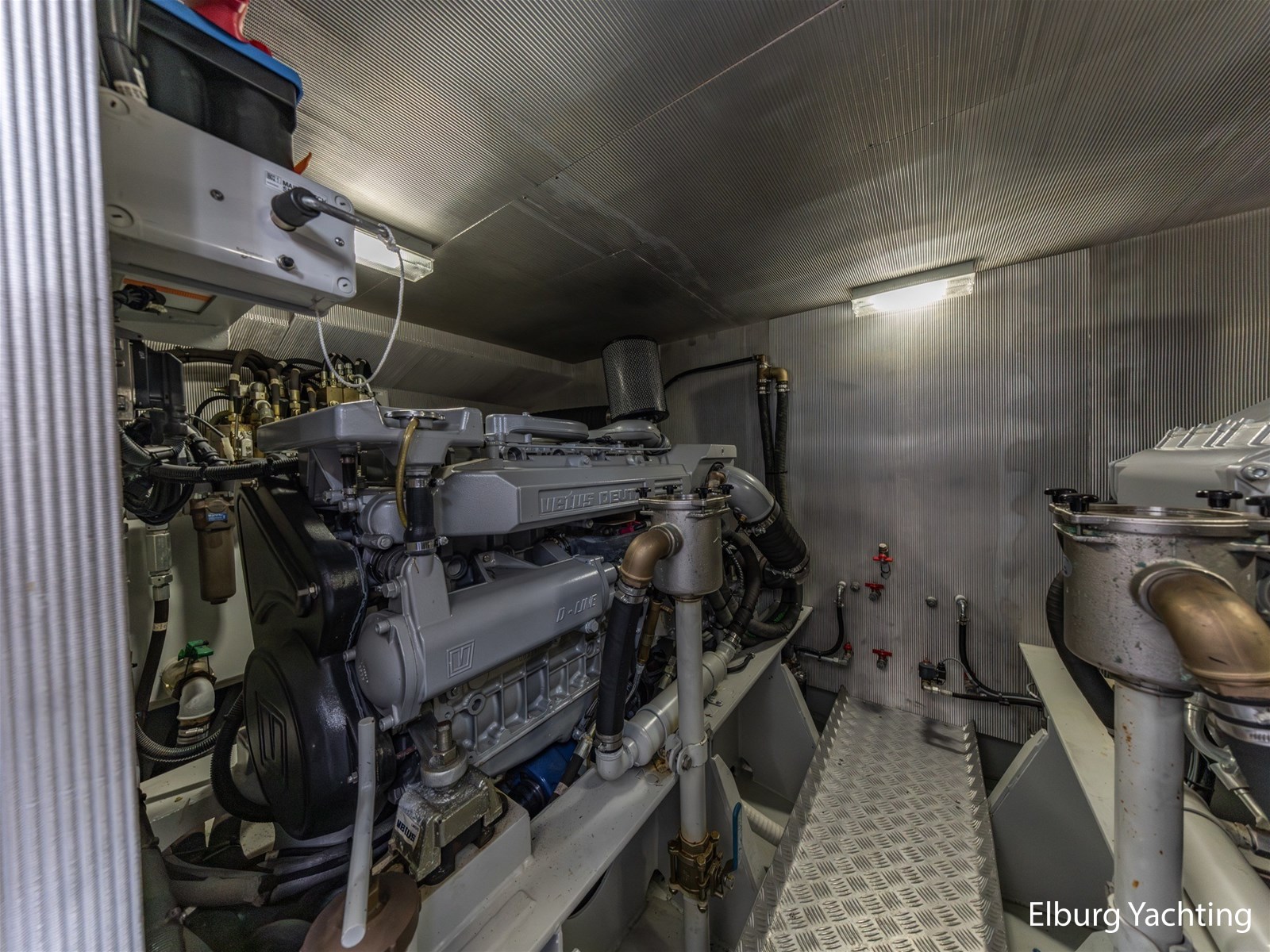

2 x 210 pk Vetus Deutz
3 x
Elburg Yachting
€ 995.000
Just Listed

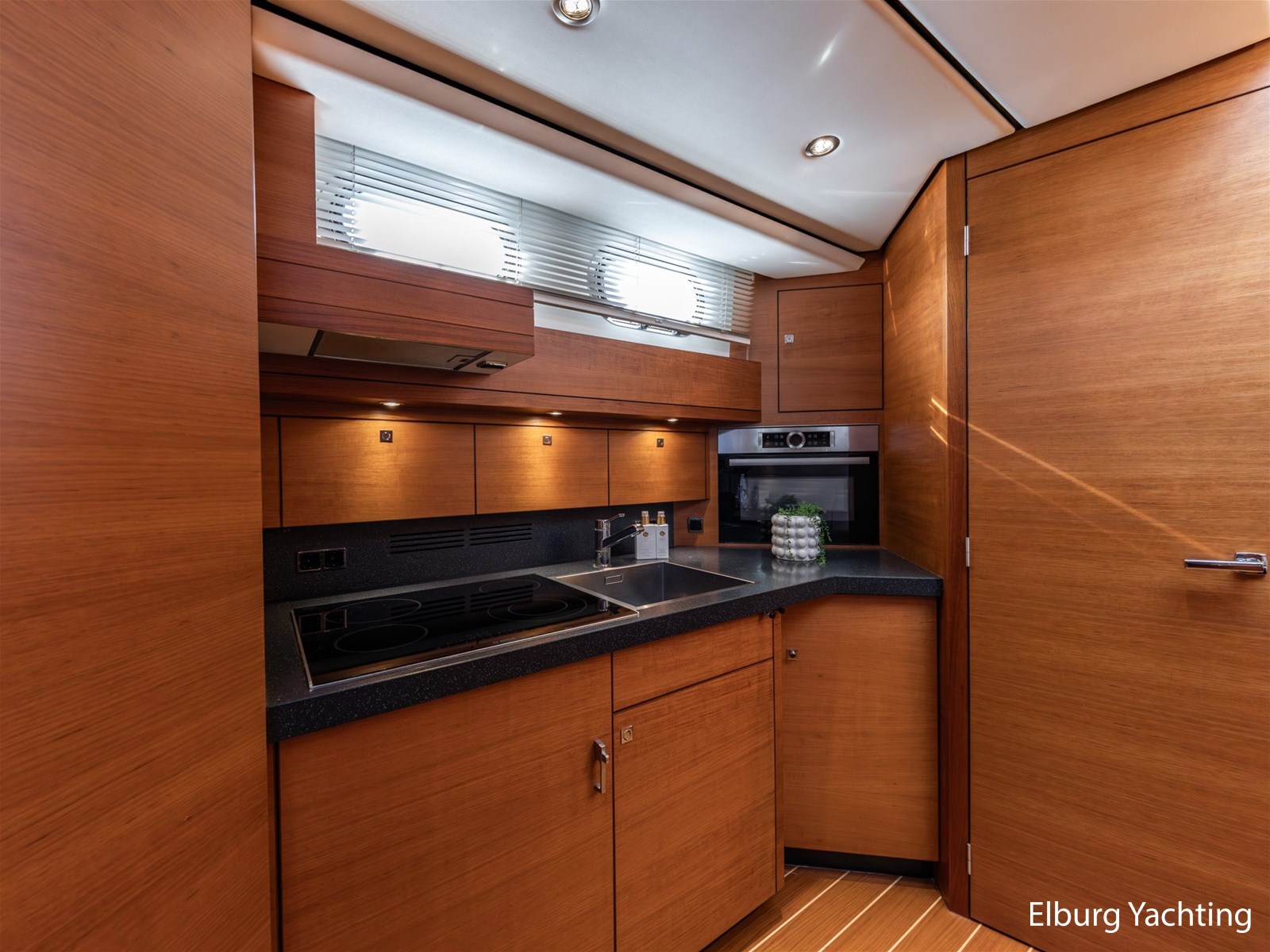

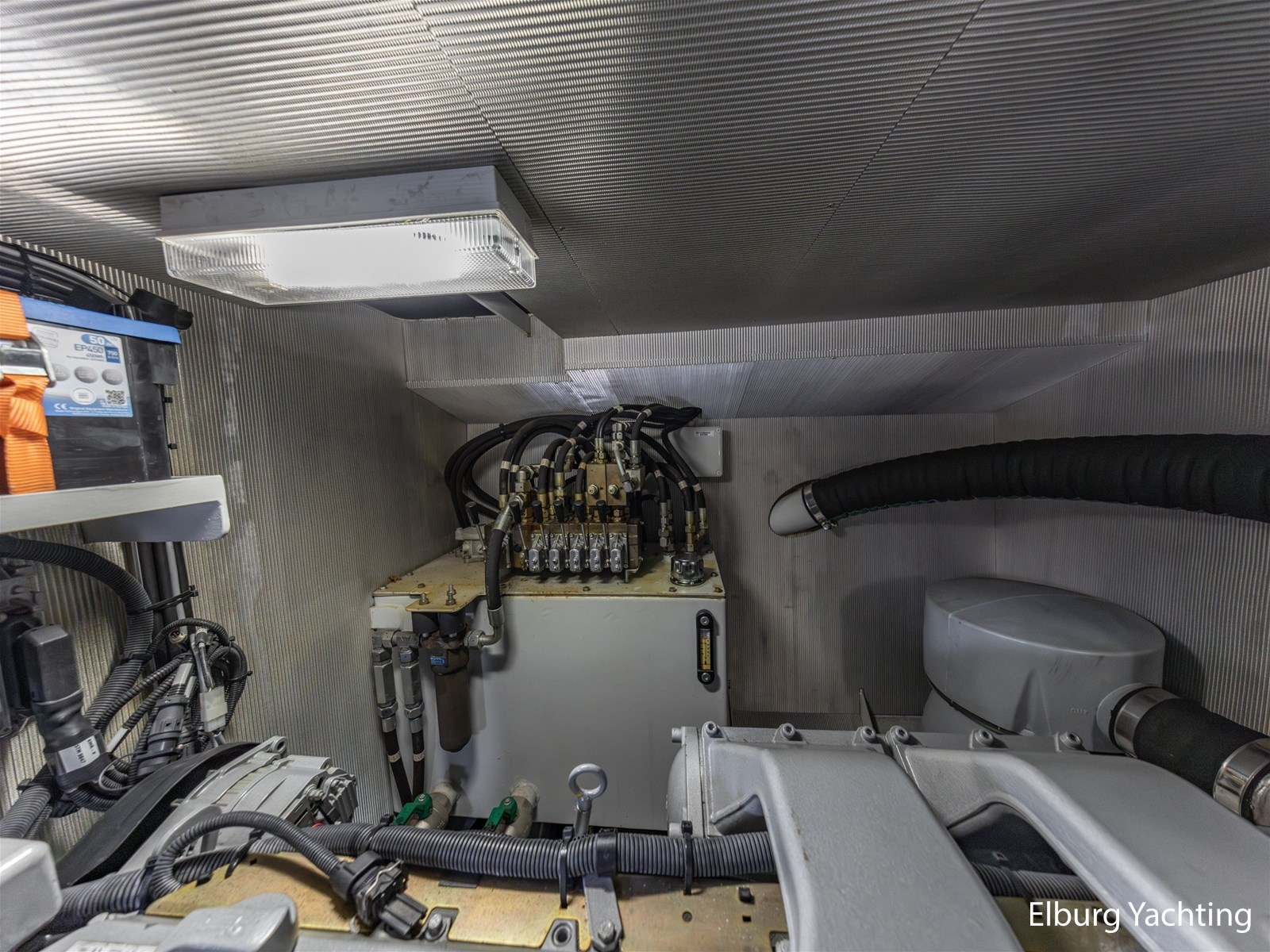

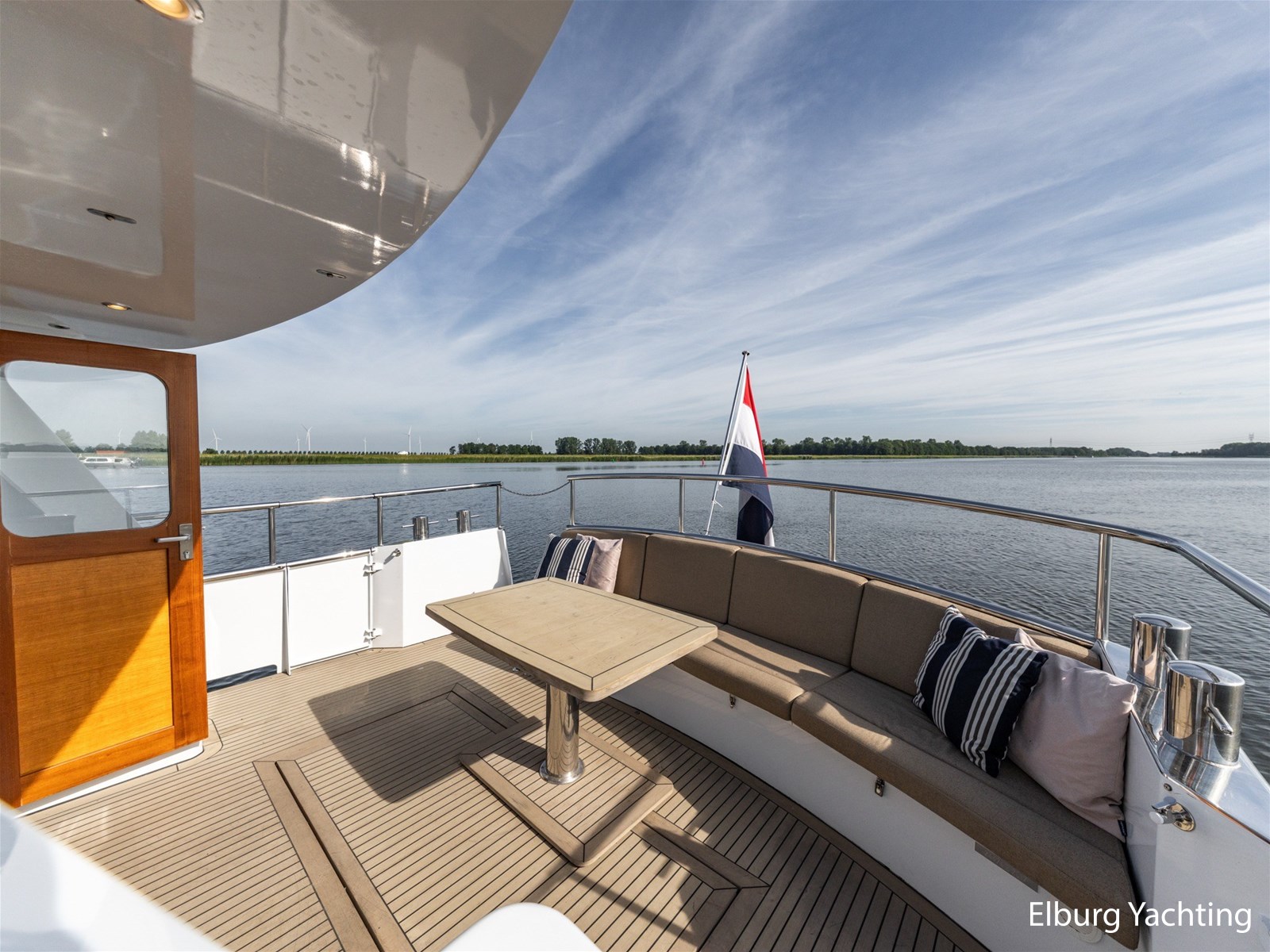

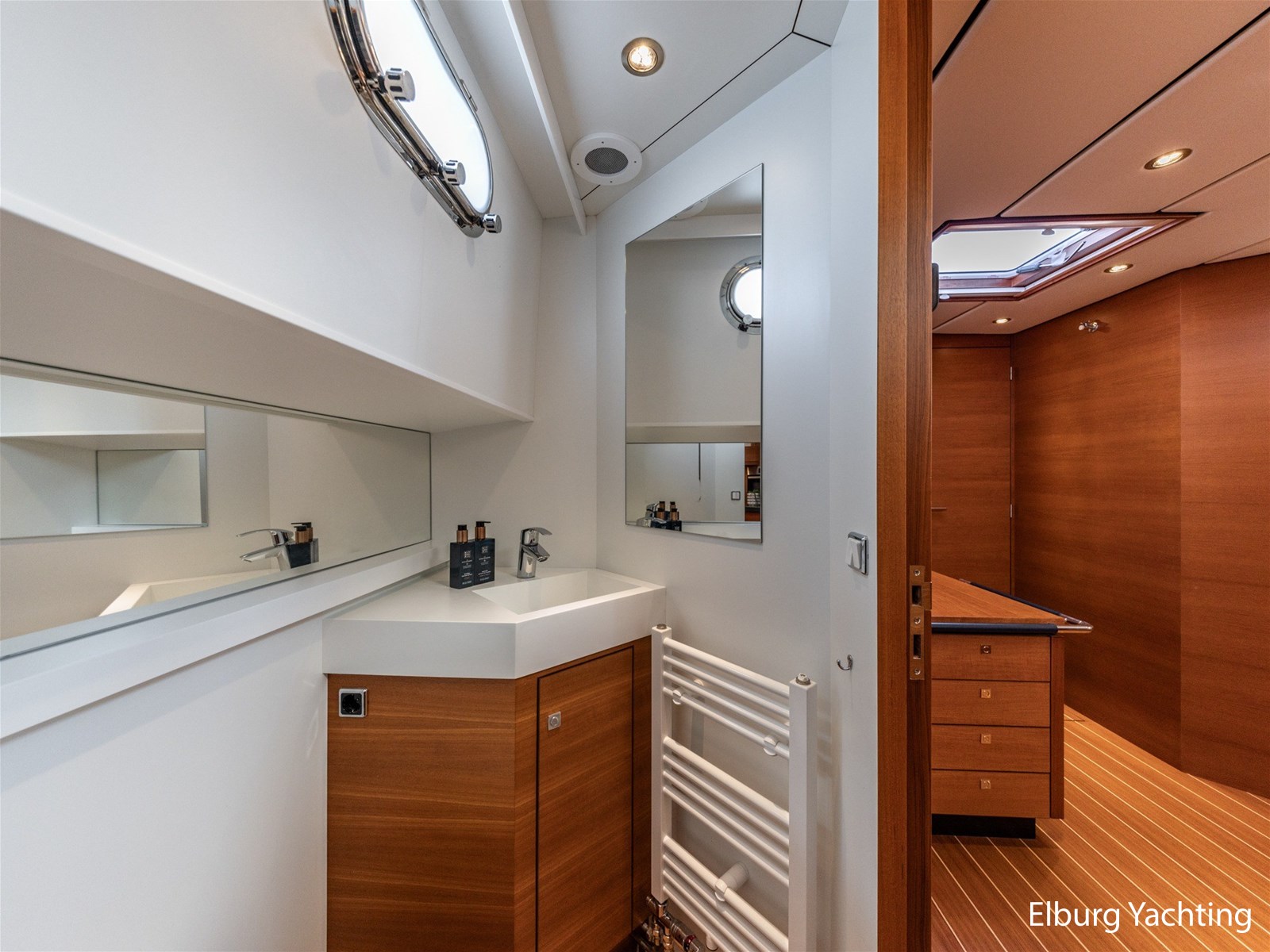

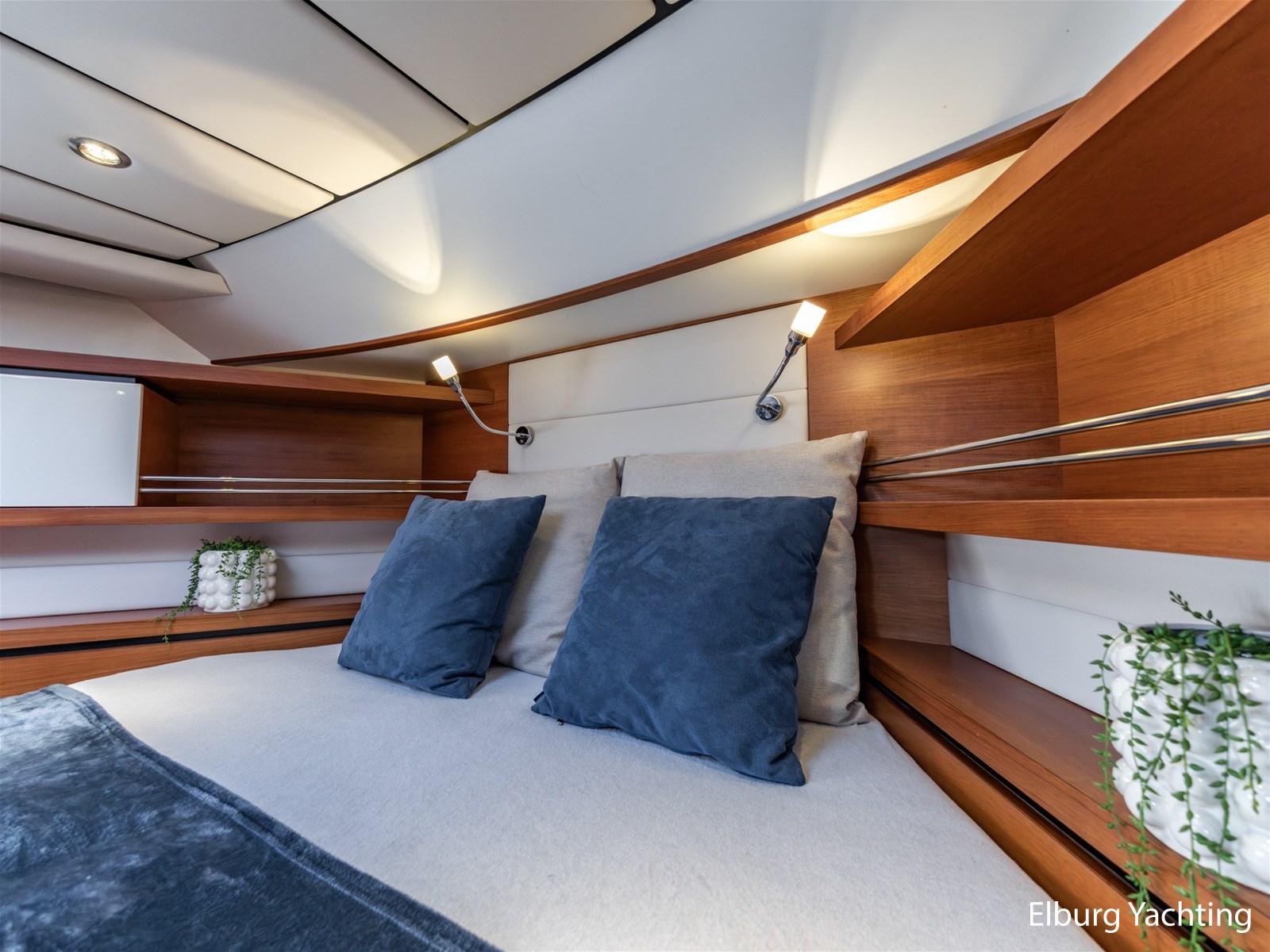

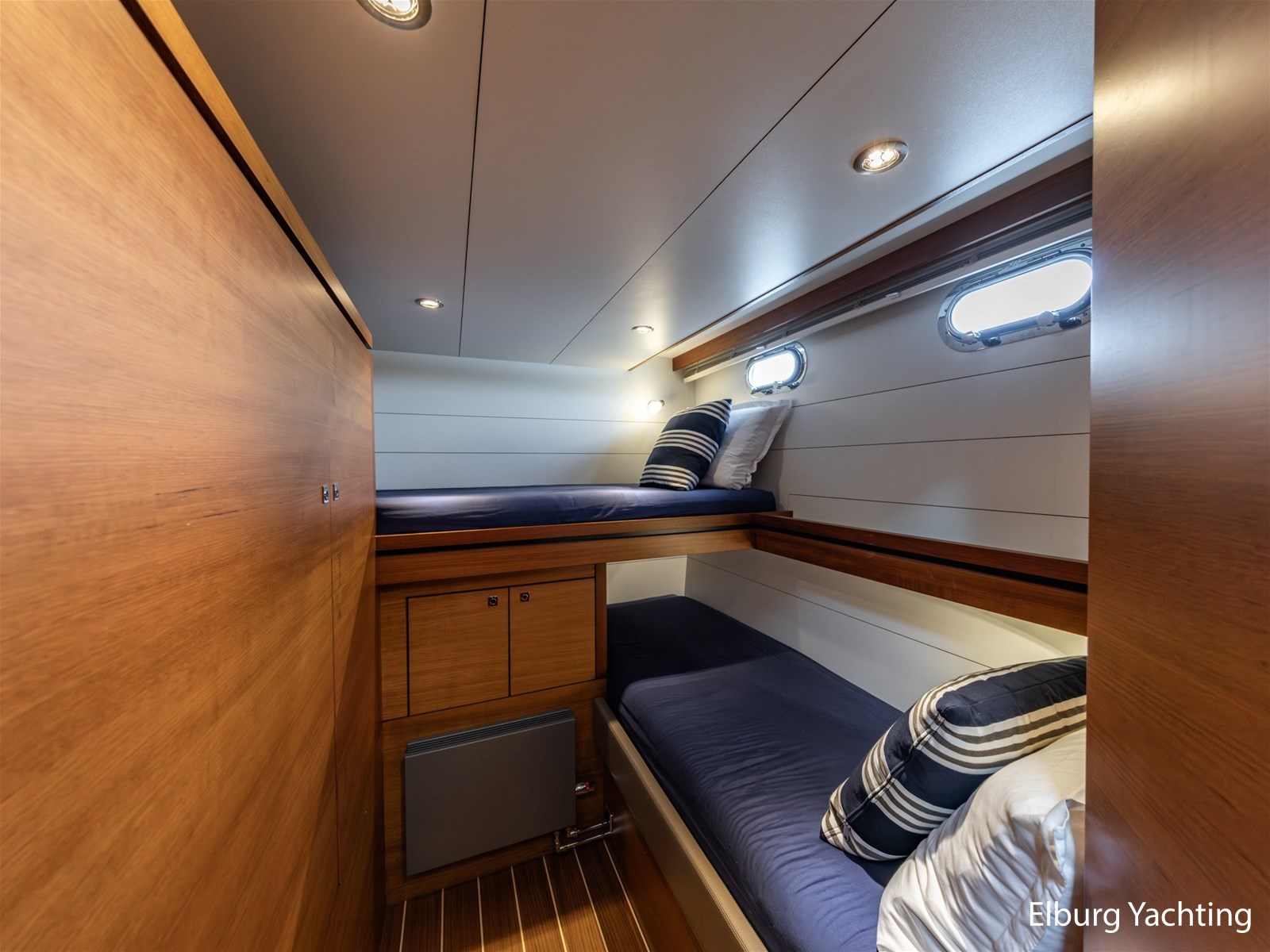

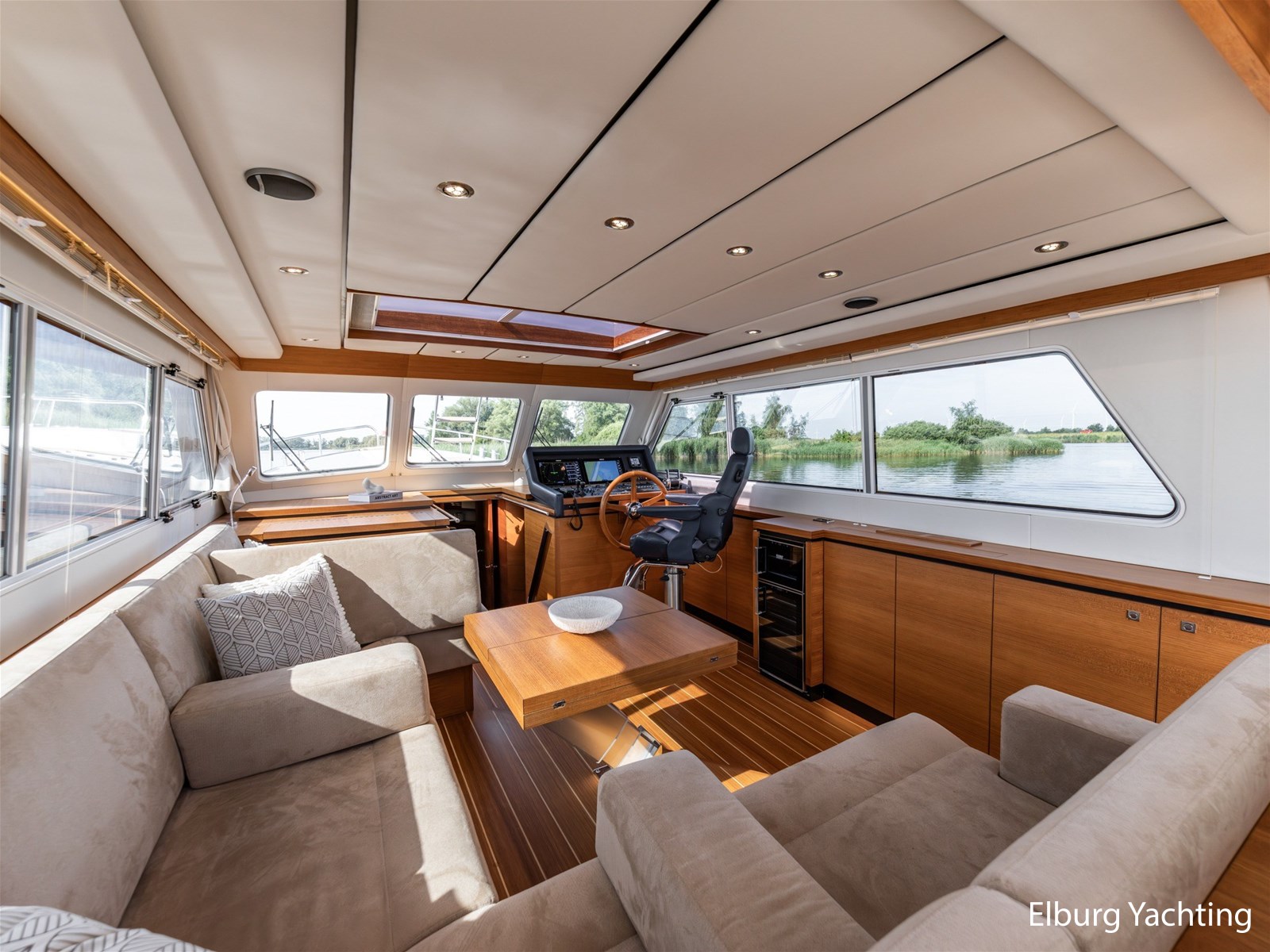

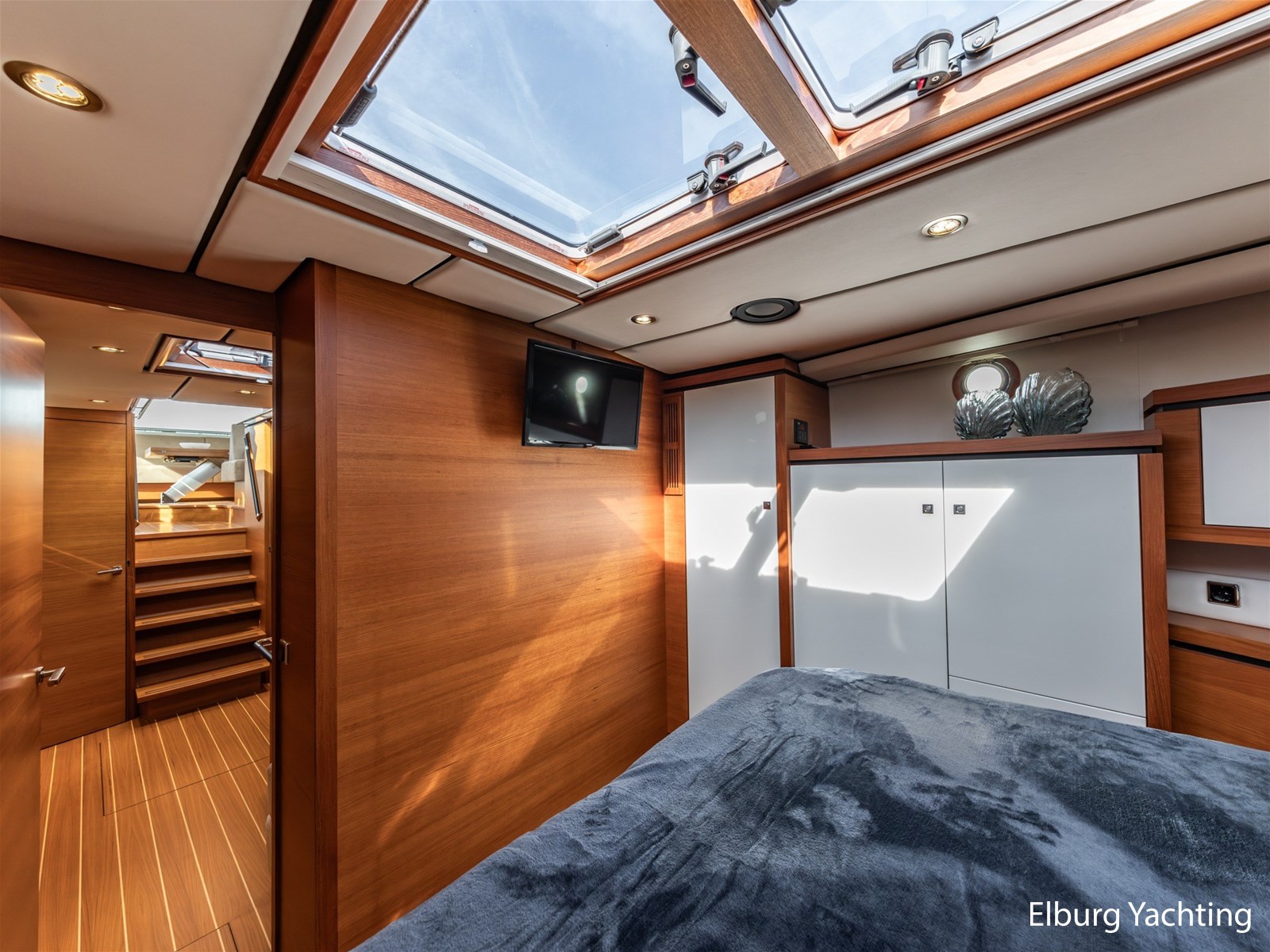

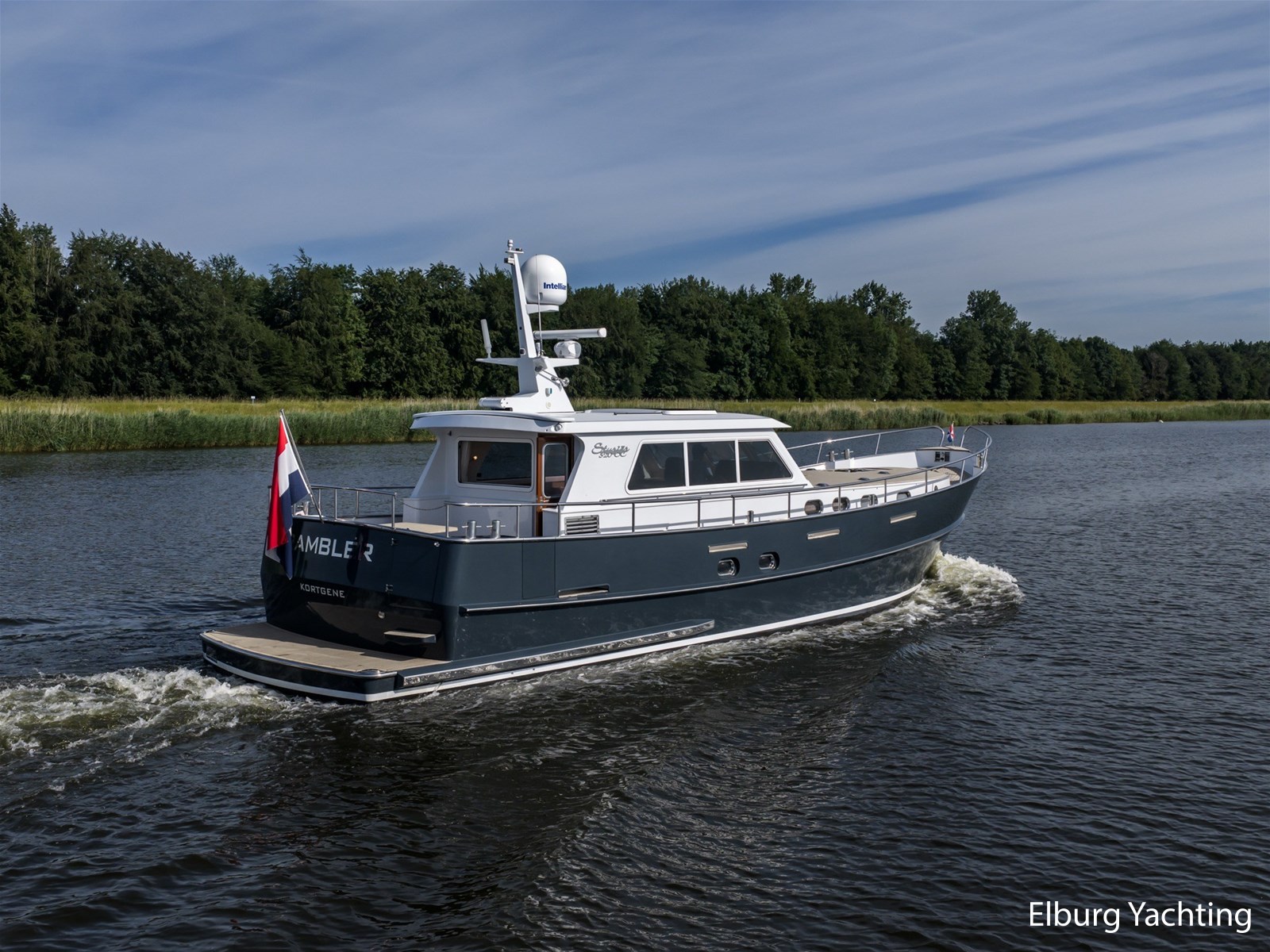

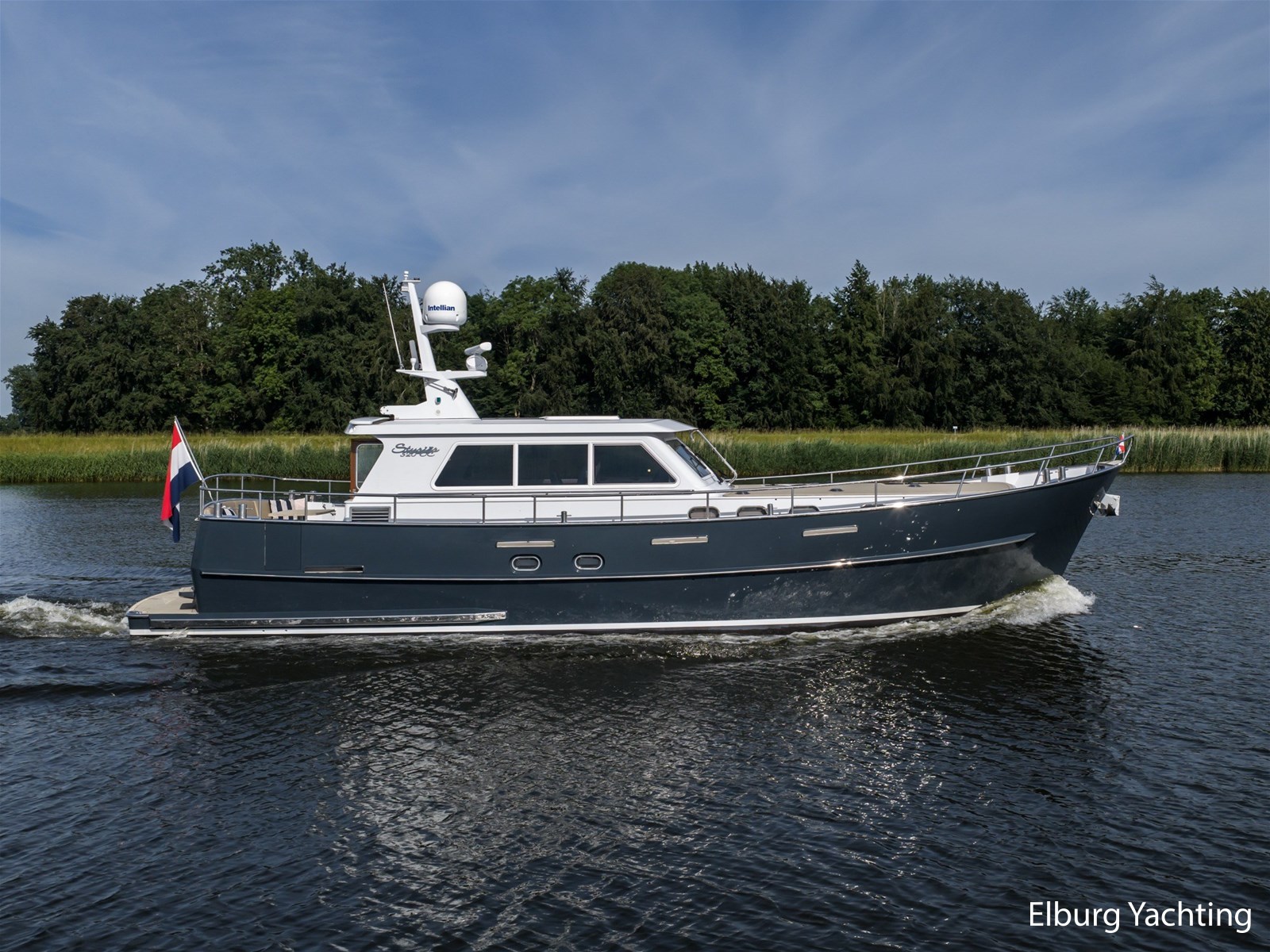

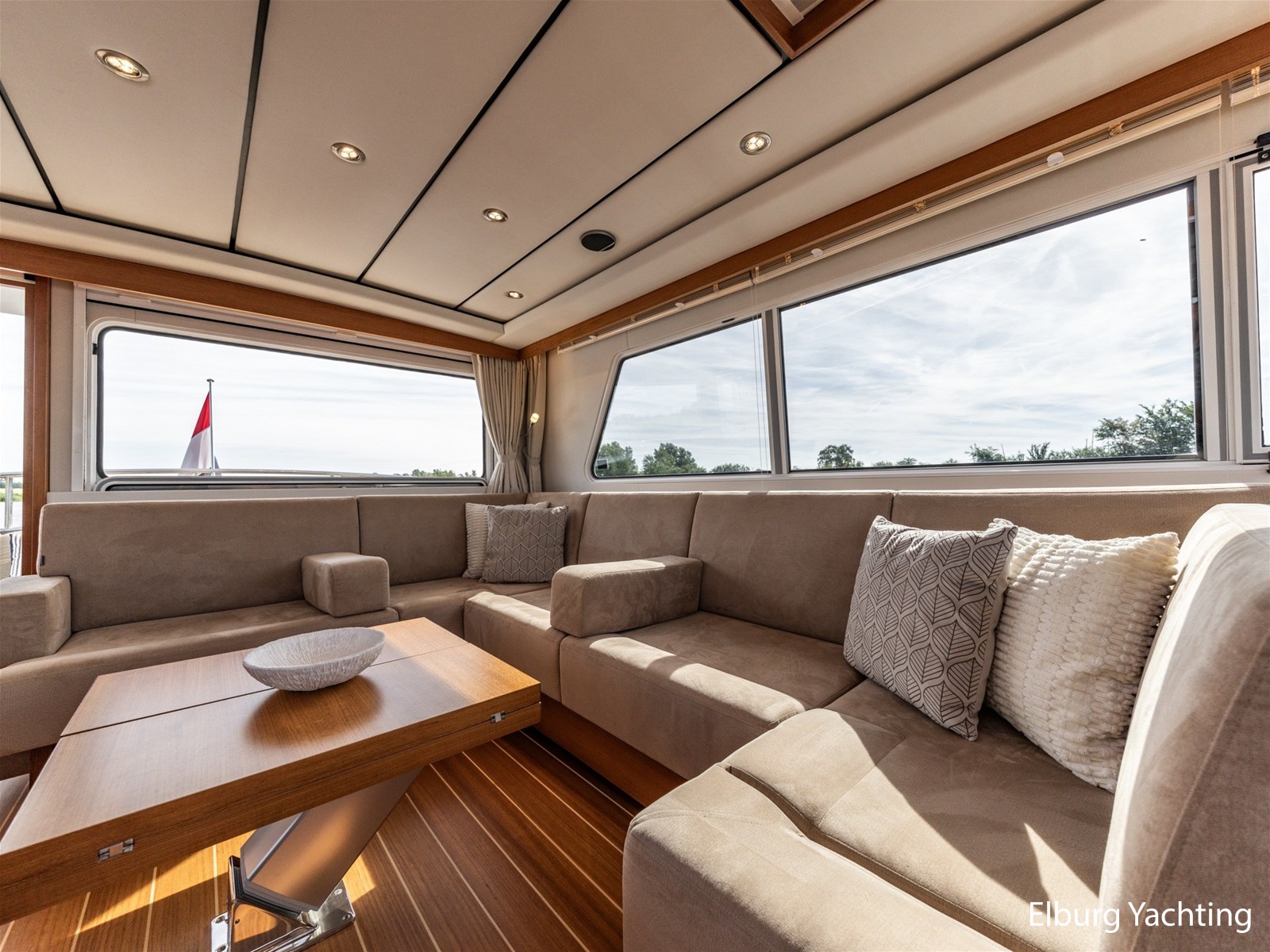

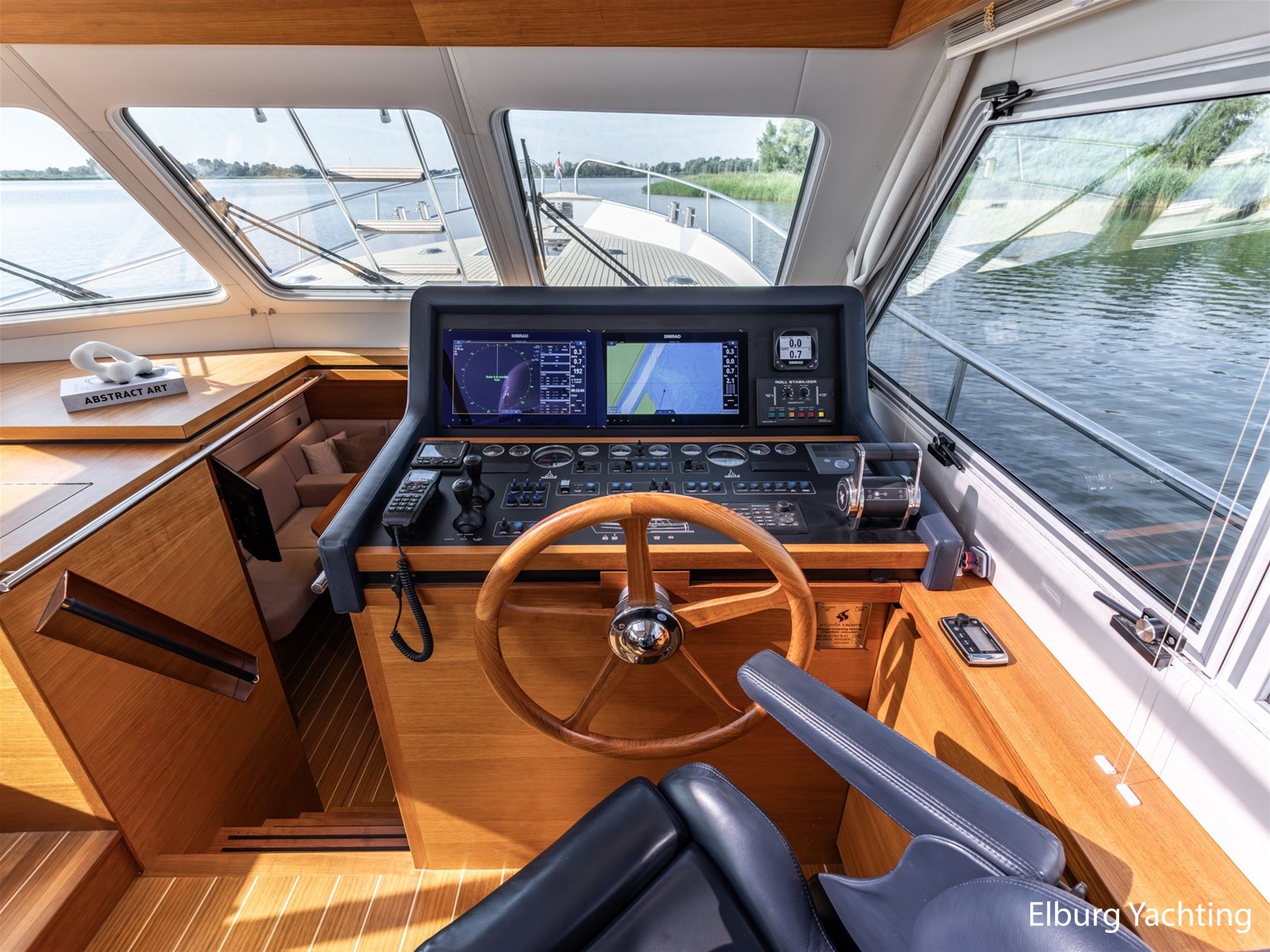

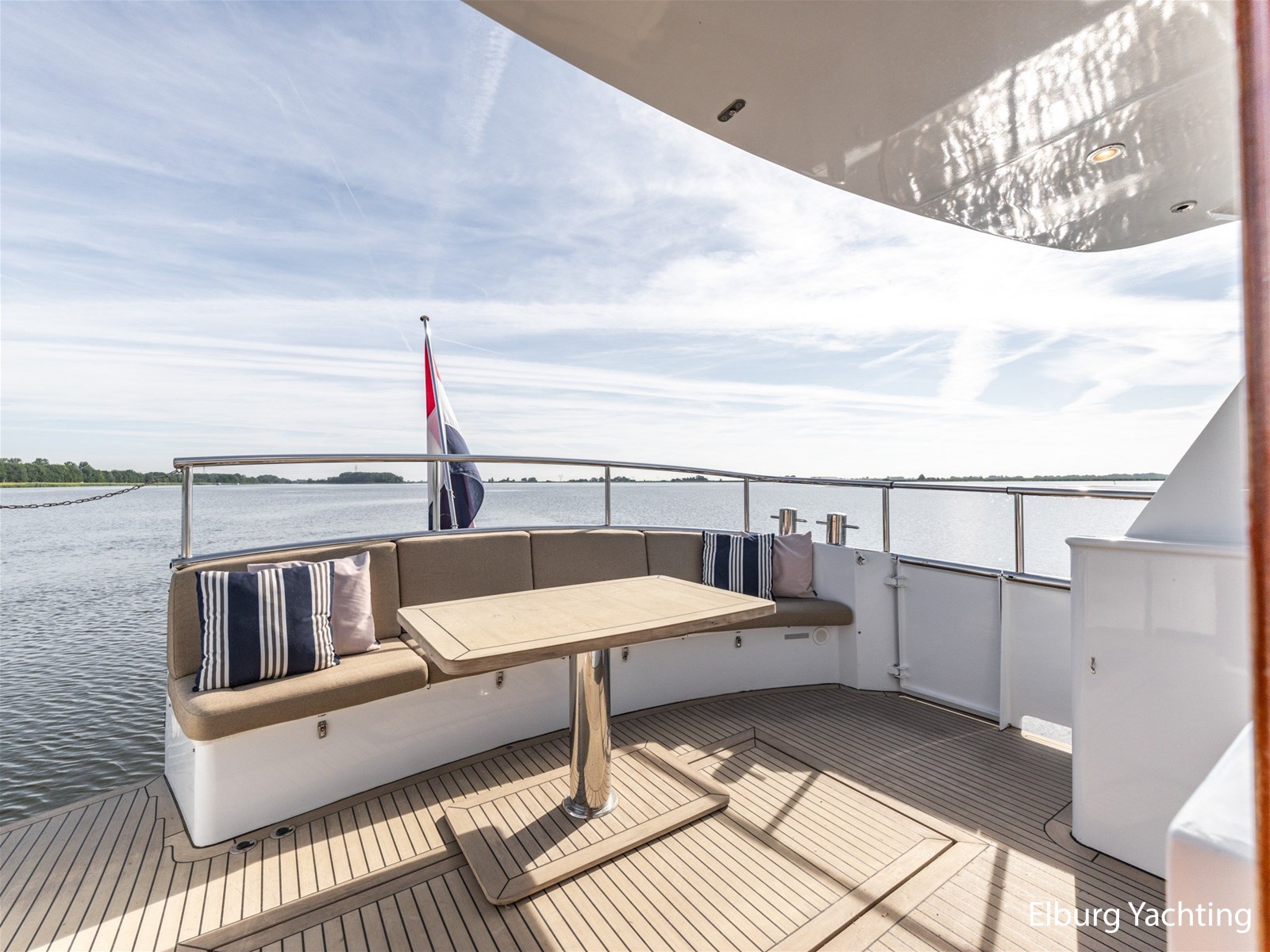

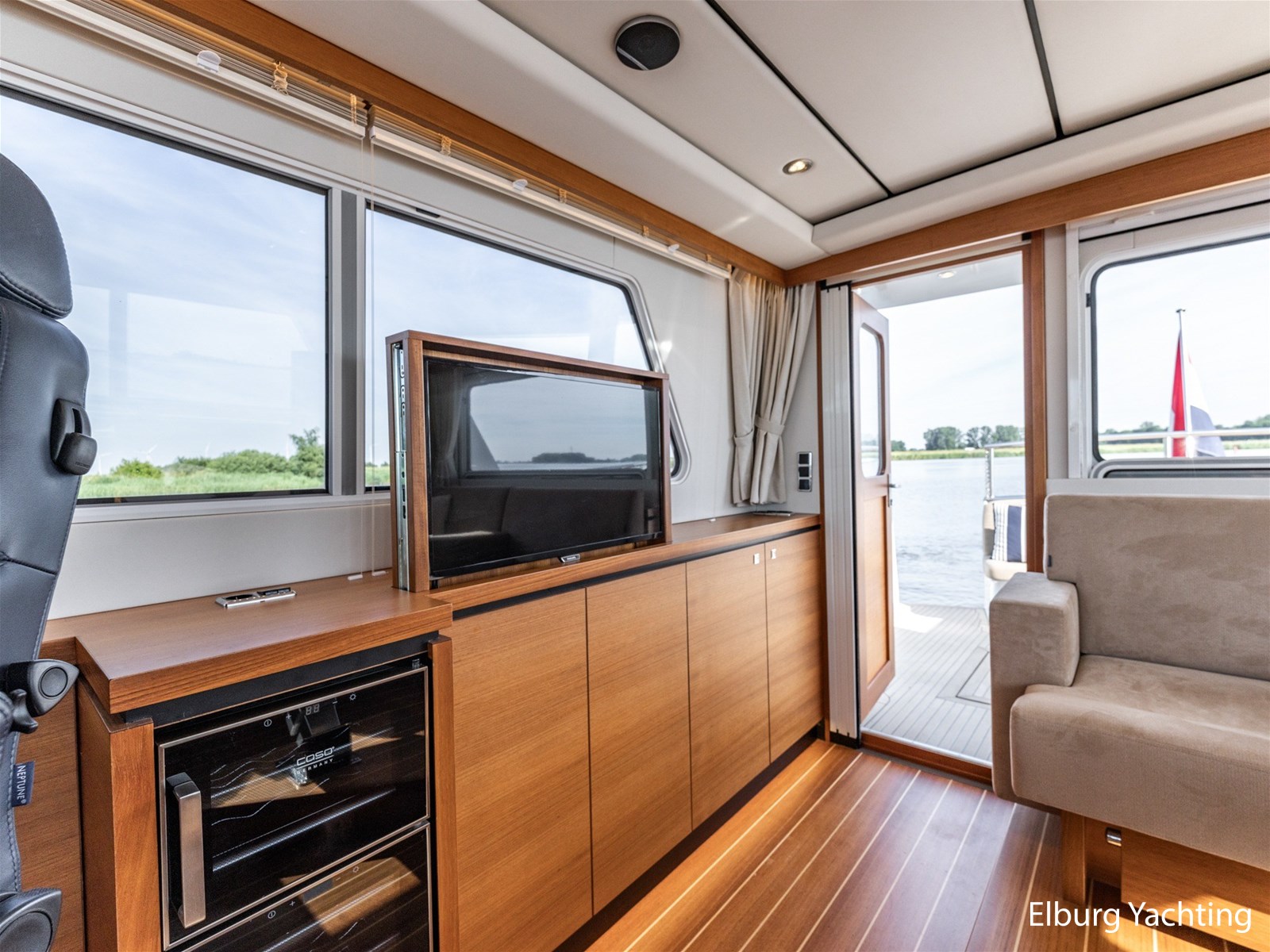

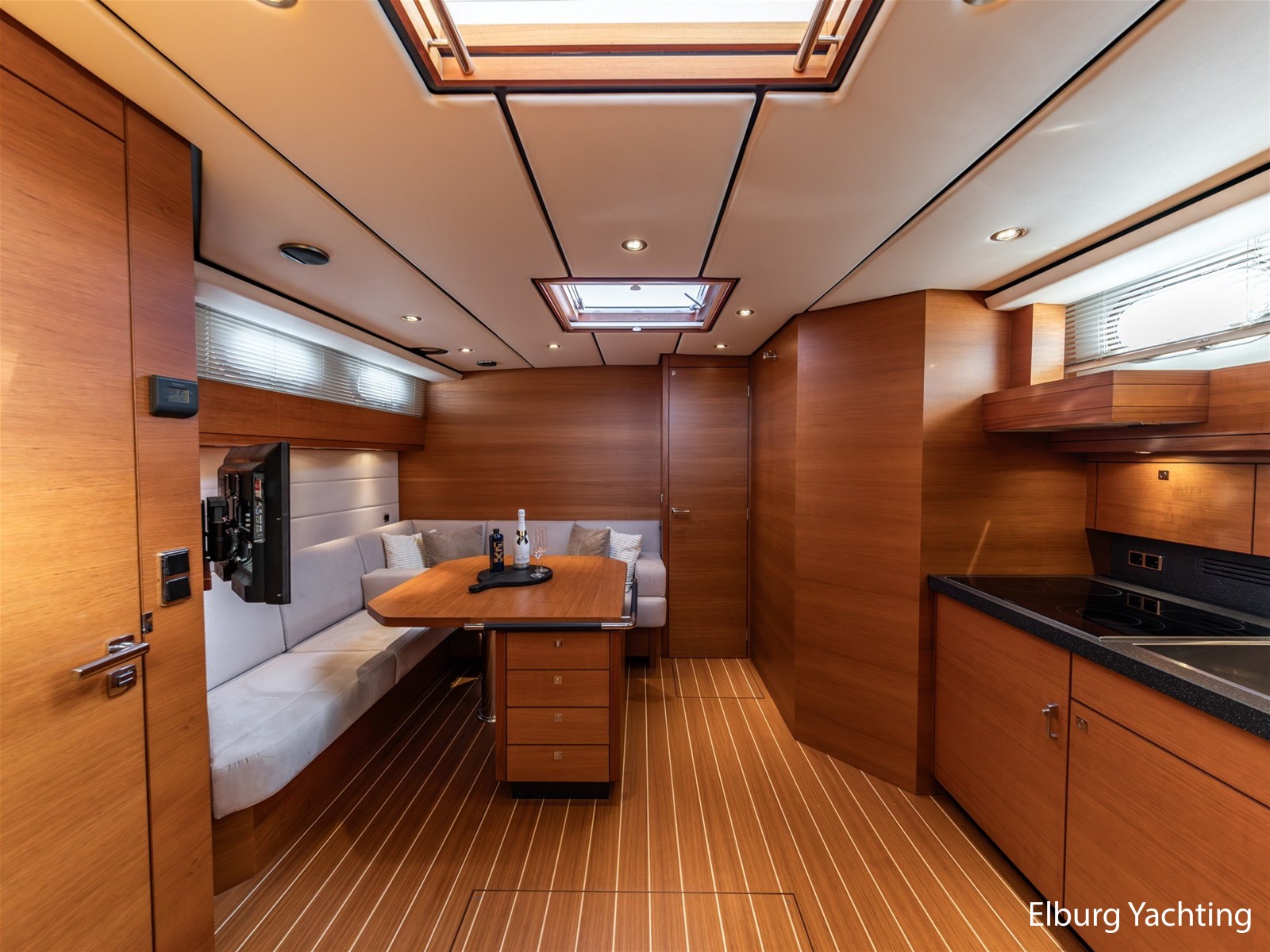

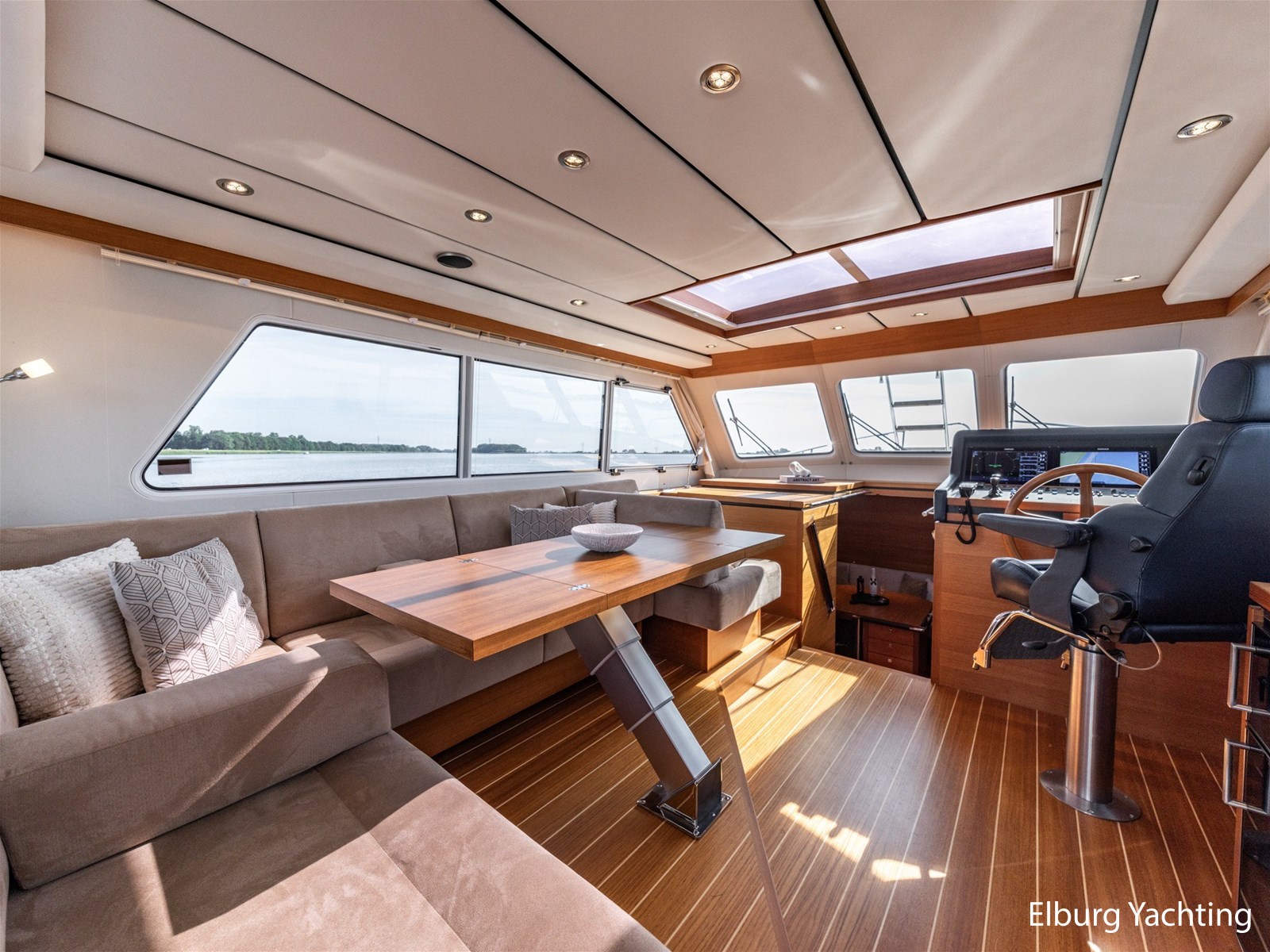

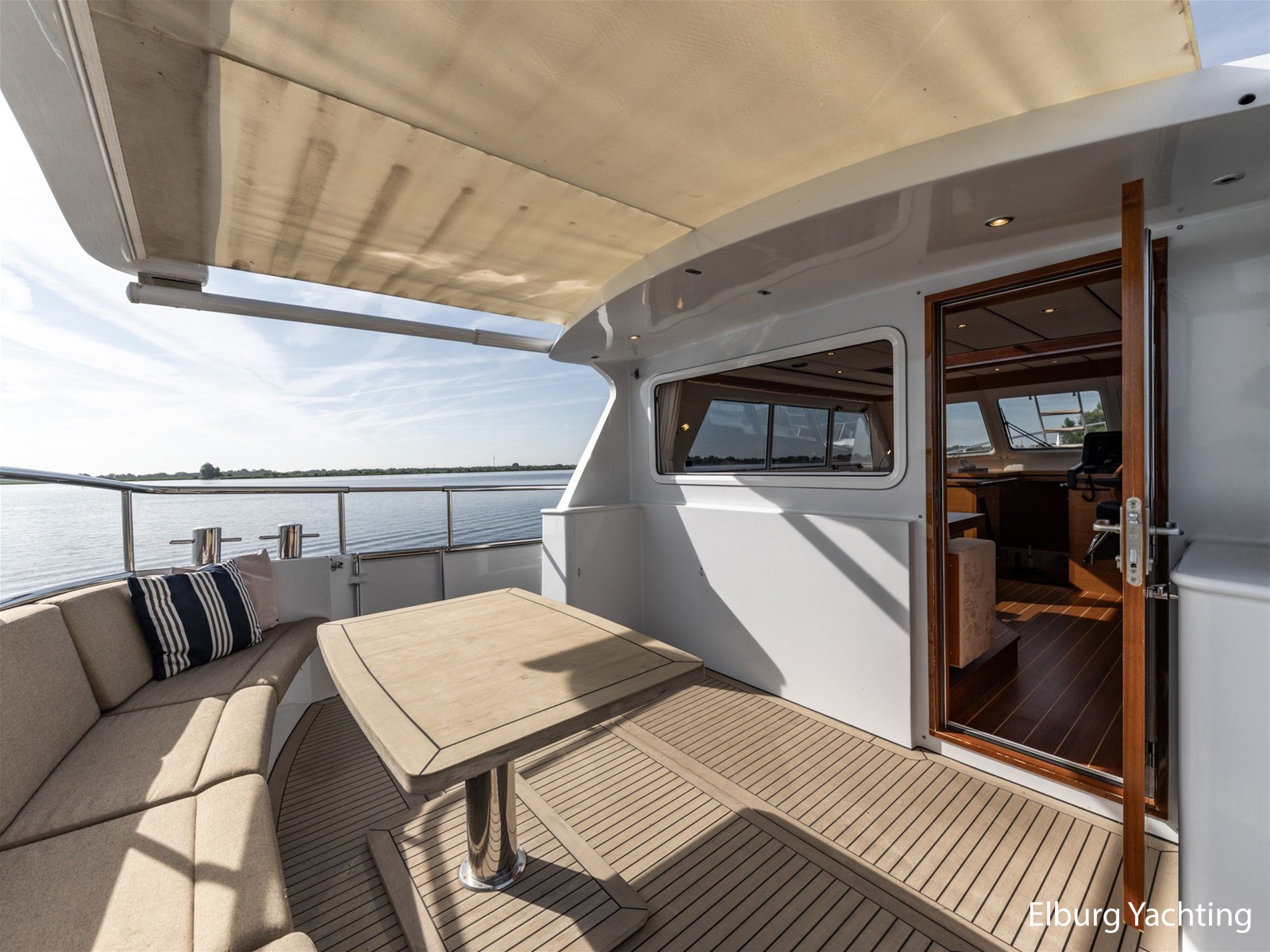

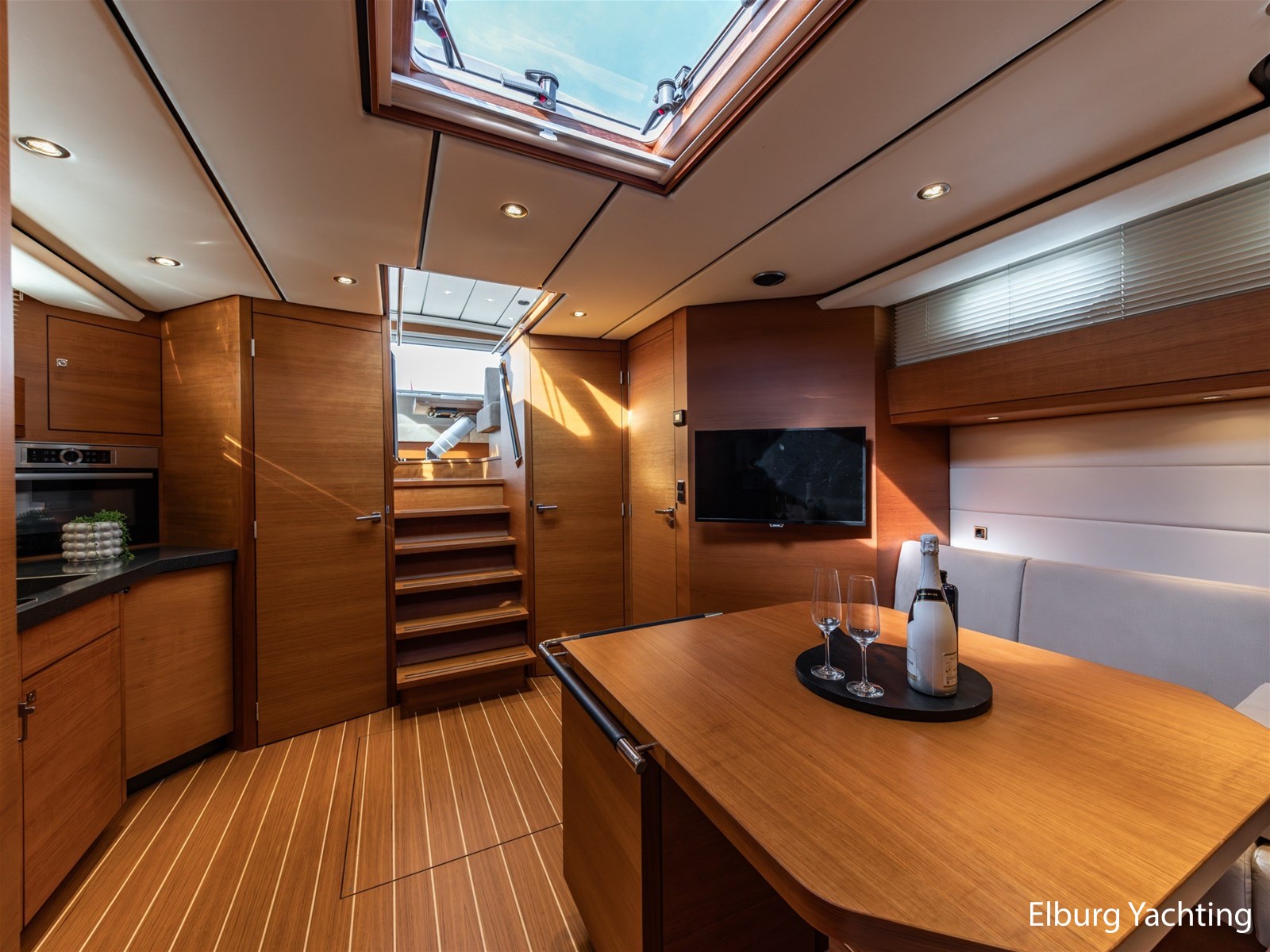

The Sturier 520 OC is a rugged, seagoing motor yacht with a comfortably appointed interior featuring high-quality materials and state-of-the-art technology, built by the Volharding Shipyard in Stavoren. This Sturier 520 OC features a three-cabin layout with a spacious two-person owner’s cabin in the bow and two comfortable two-person guest cabins amidships. The vessel is equipped with two private bathrooms, each with a toilet and an enclosed shower stall. The wheelhouse and aft deck are connected on the same level. The galley and salon are located below deck and offer plenty of comfort for all onboard. Propulsion is provided by two Vetus Deutz engines, each with 210pk, ensuring smooth, quiet, yet powerful maneuverability. The bow and stern thrusters are hydraulically driven and can be controlled proportionally. The Hydronautica remote control combines the propulsion of both main engines with the bow and stern thrusters to facilitate docking and undocking. This yacht is equipped with hydraulic Naiad fin stabilizers, which make for a more comfortable ride even in rough weather. This Sturier 520 OC is richly equipped and features, among other things: Integrated storage lockers with matching cushion set and cover, a large electrically retractable sun awning that extends across the entire cockpit, a TV on a lift in the wheelhouse plus TVs in the salon and owner’s cabin, a Mastervolt EasyView 5 display, a Wi-Fi router (SIM card not included), a height-adjustable electric table in the salon, insect screens for portholes and deck hatches, a bed in the forward cabin equipped with electrically adjustable slatted bases and Neptune mattresses, a Bosch washer/dryer combo, Corian countertops, a lockable cockpit with a transom door and two doors in the bulwark for easy boarding and disembarking, a large roof hatch above the helm, Fusion audio system, 3 openable windows in the wheelhouse, fixed bulwark all around with stainless steel gunwale, large electrically operated cockpit hatch for storage and access to the engine room. Headroom approx. 3.45 m with the mast hydraulically lowered. The vessel has been stored annually in an insulated winter storage facility, in conjunction with regular maintenance of the vessel and its systems. For questions and/or to schedule an appointment, you are welcome to visit Elburg Yachting 7 days a week.

Material hull
Steel - Dark grey
Material superstructure
Steel - White

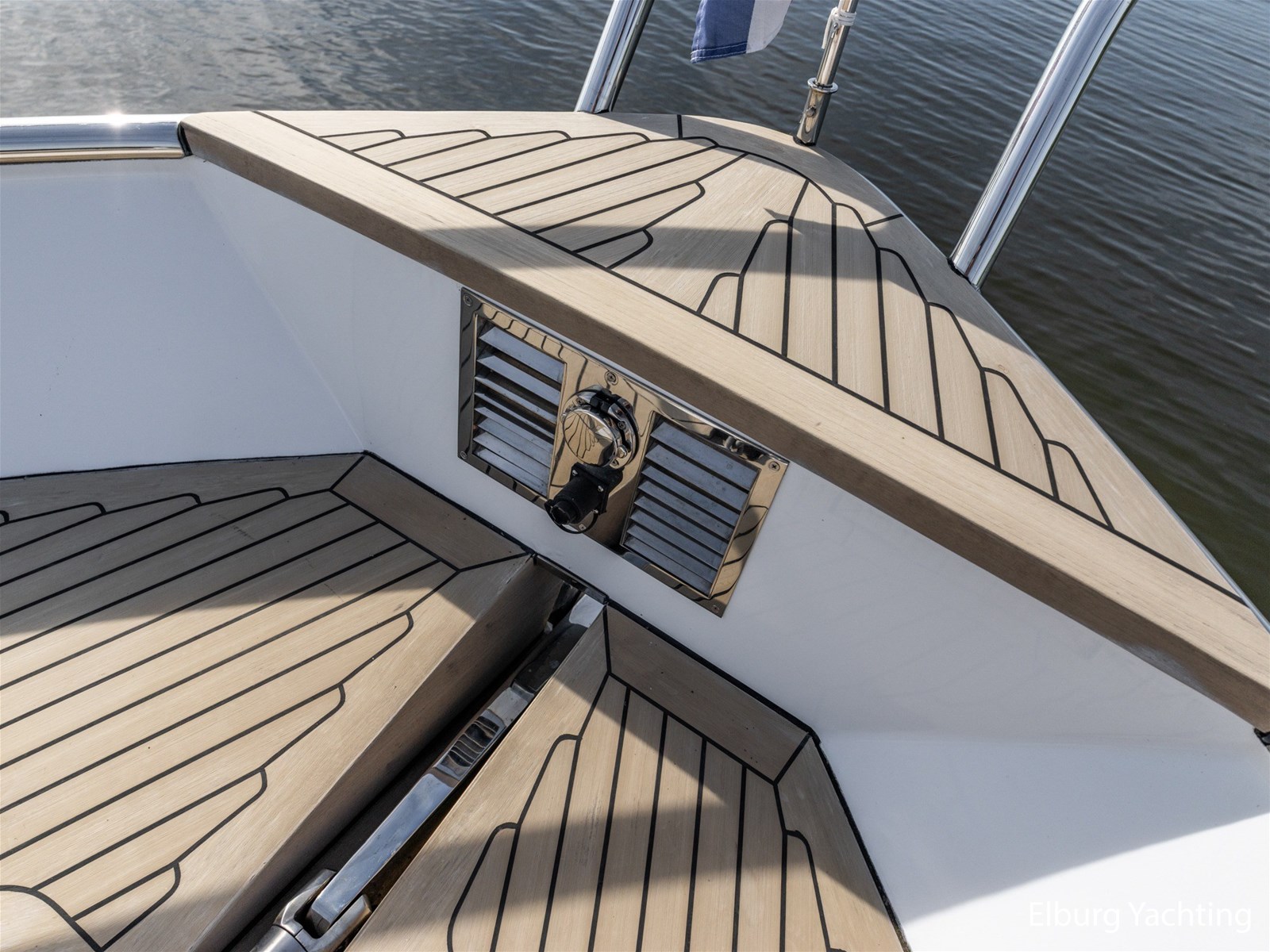

Material deck

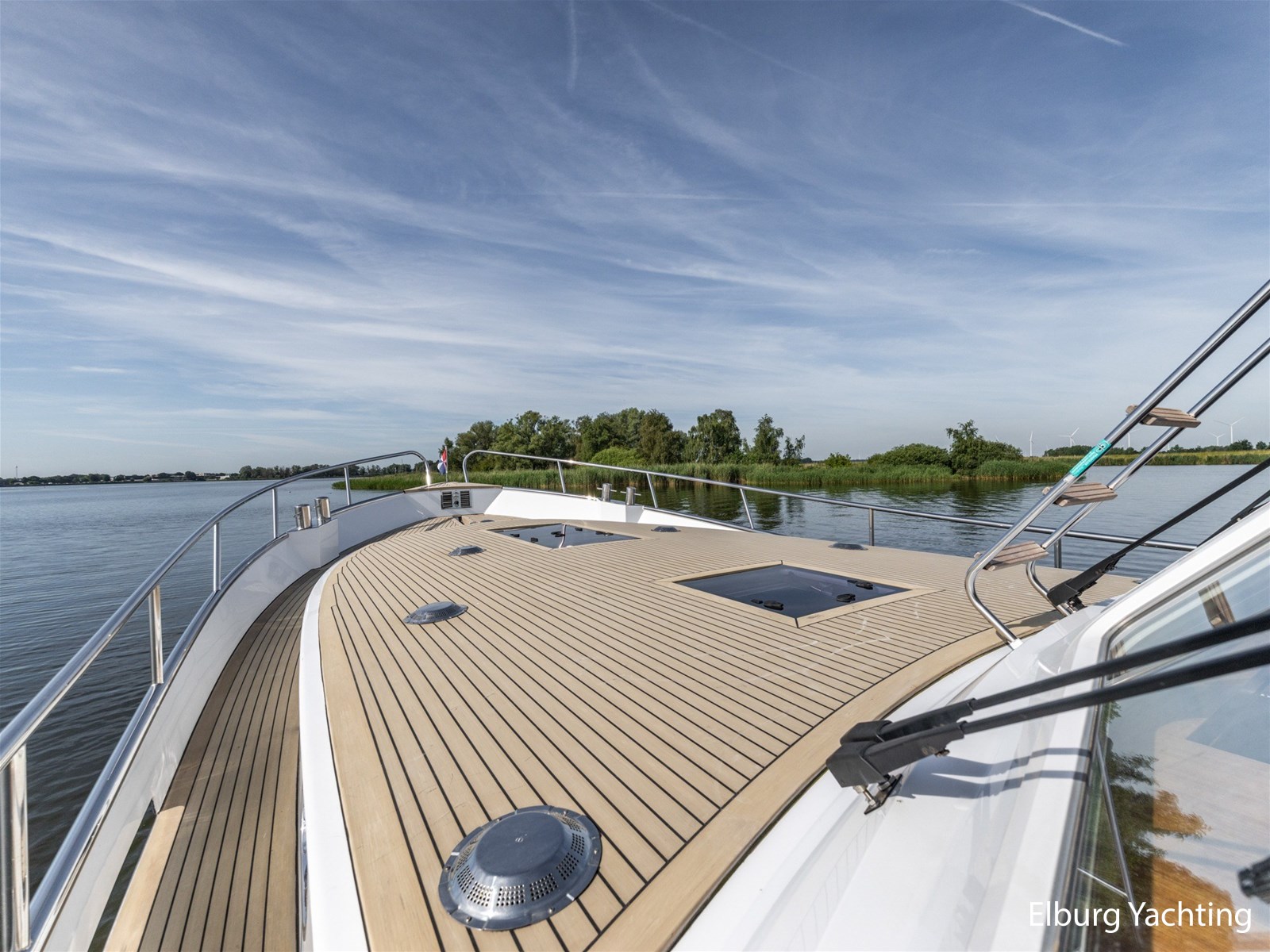

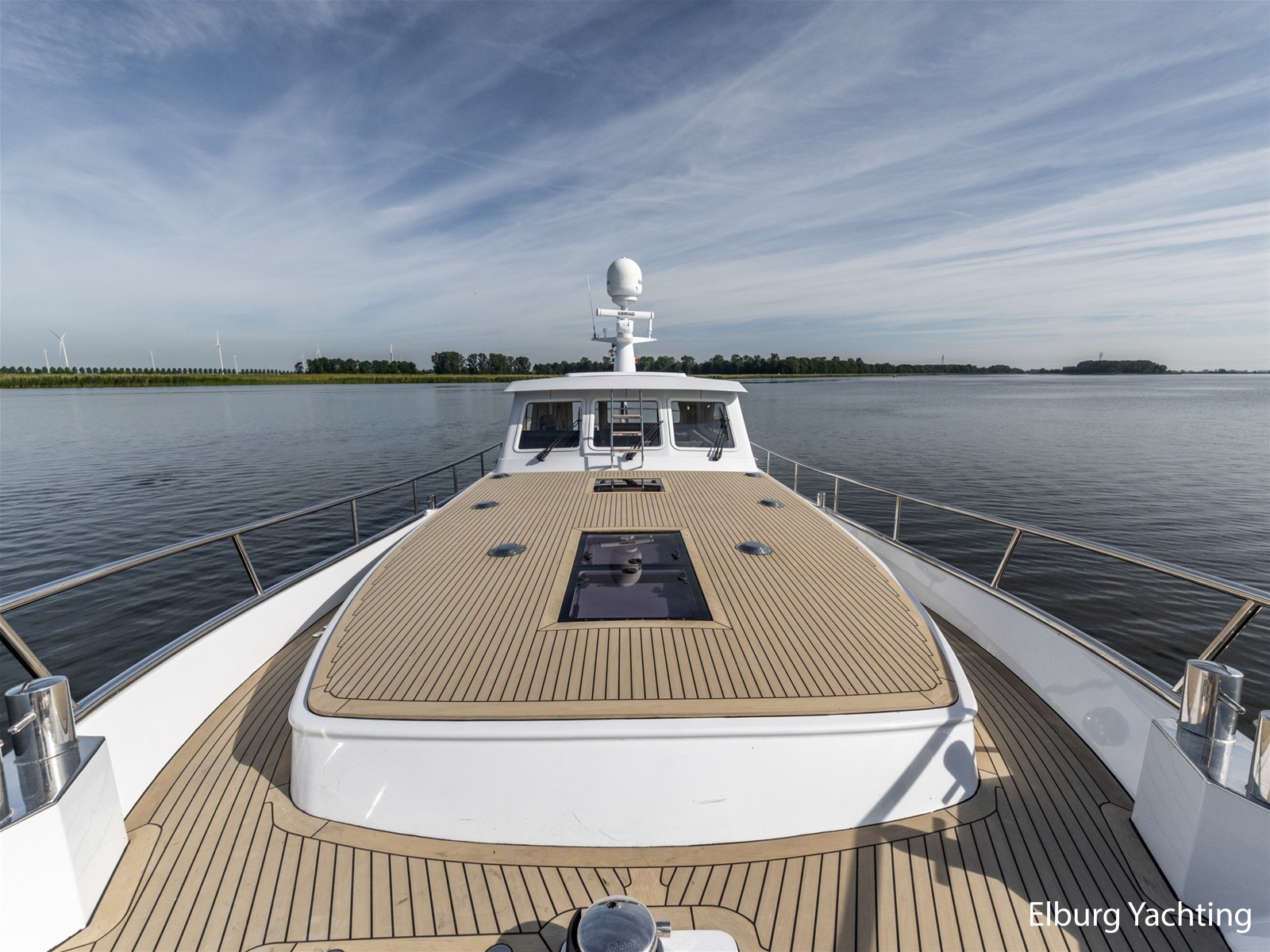

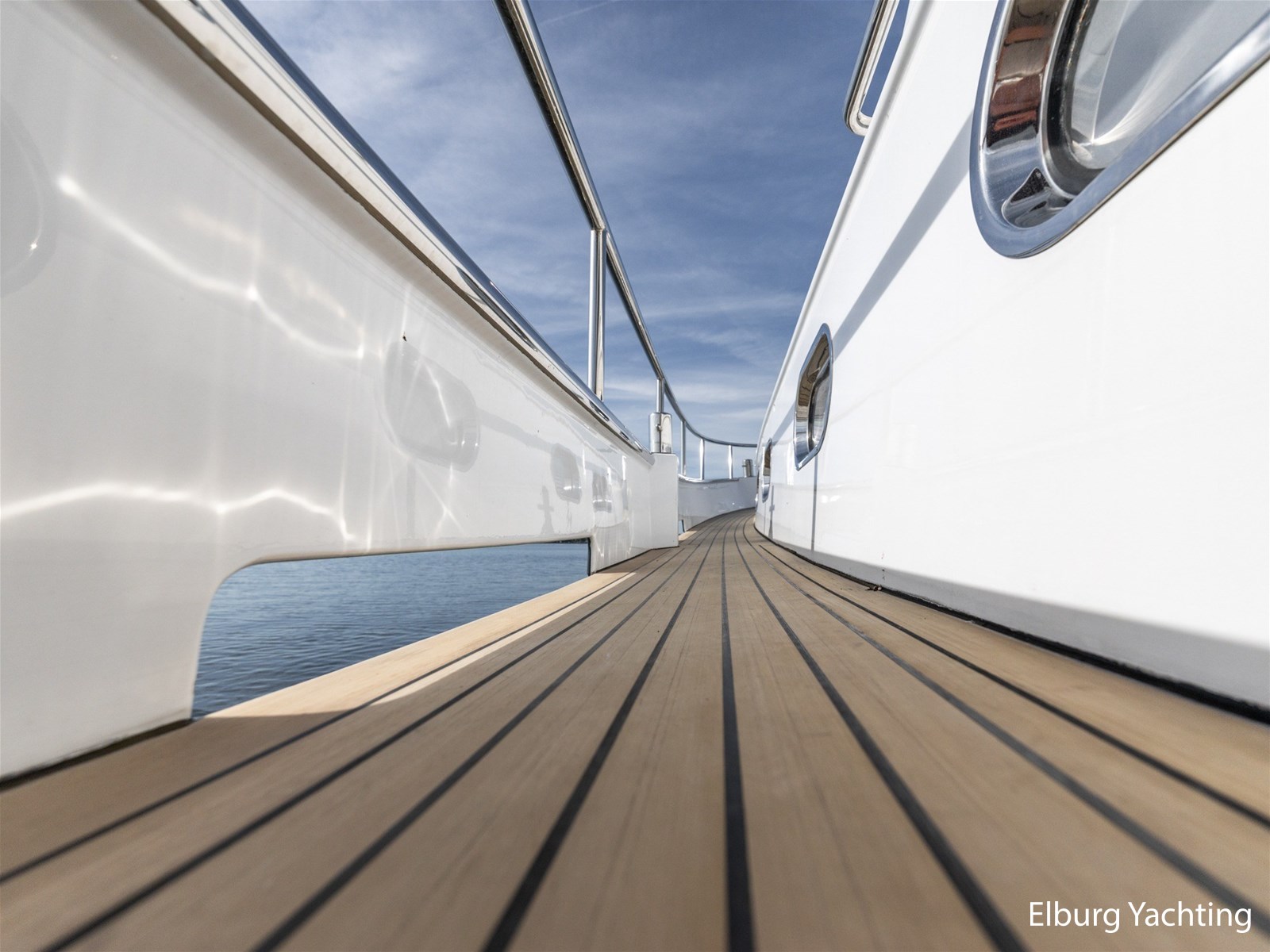

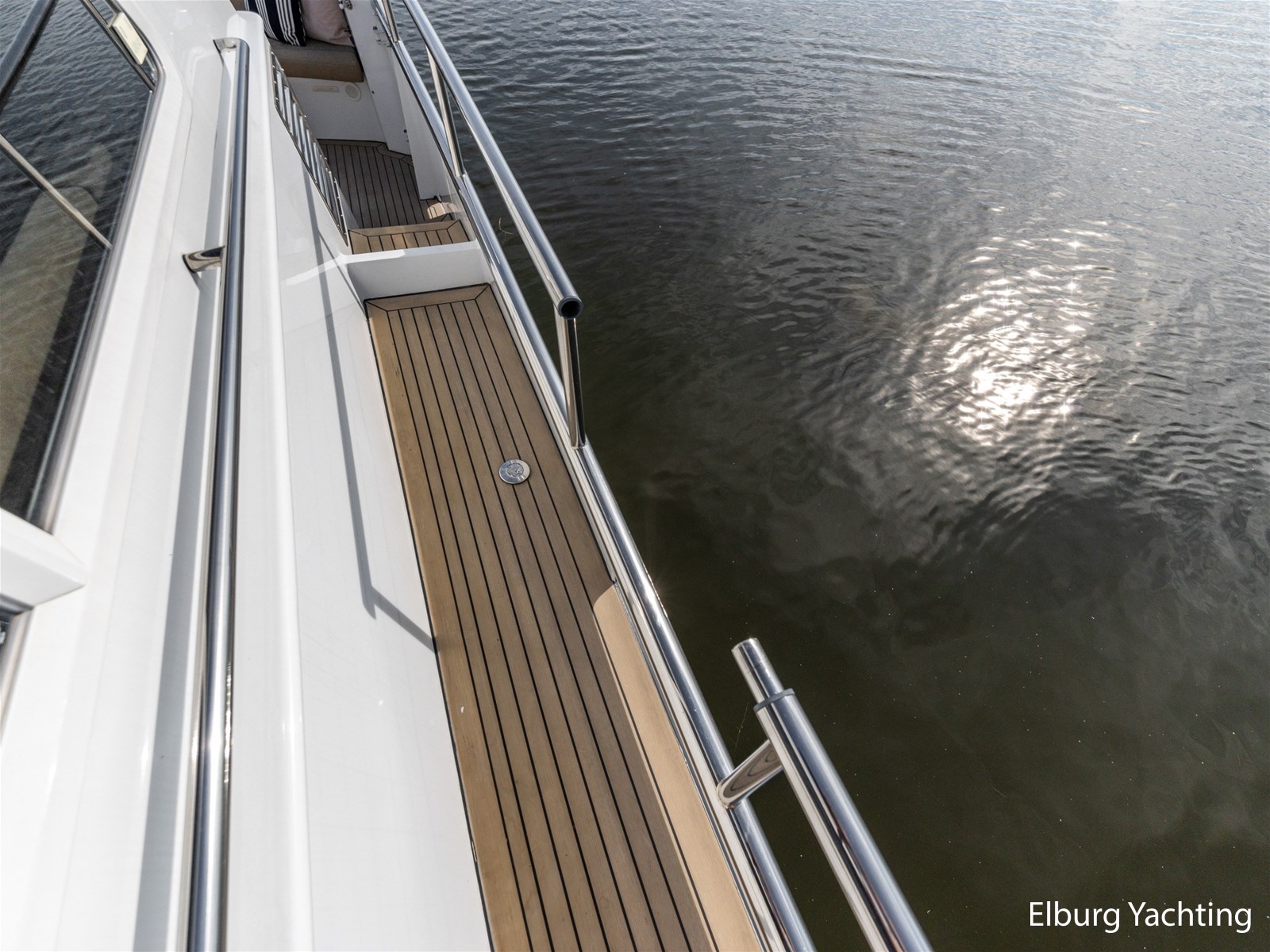

Full synthetic teak deck all around and in open cockpit
Hull shape
Multi chine hull + Naiad hydraulic fin stabilizers
Displacement
Appr. 32 Tons

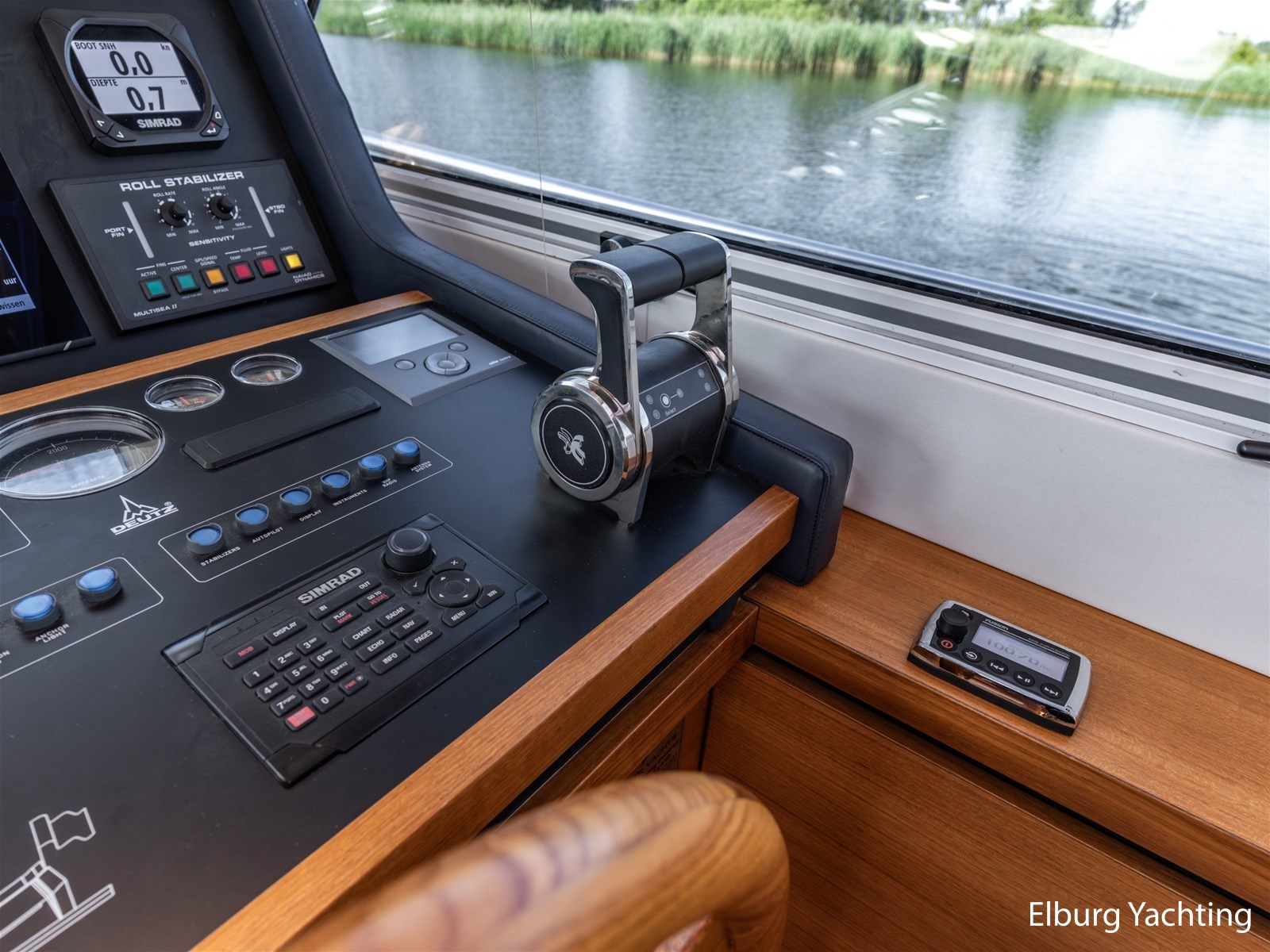

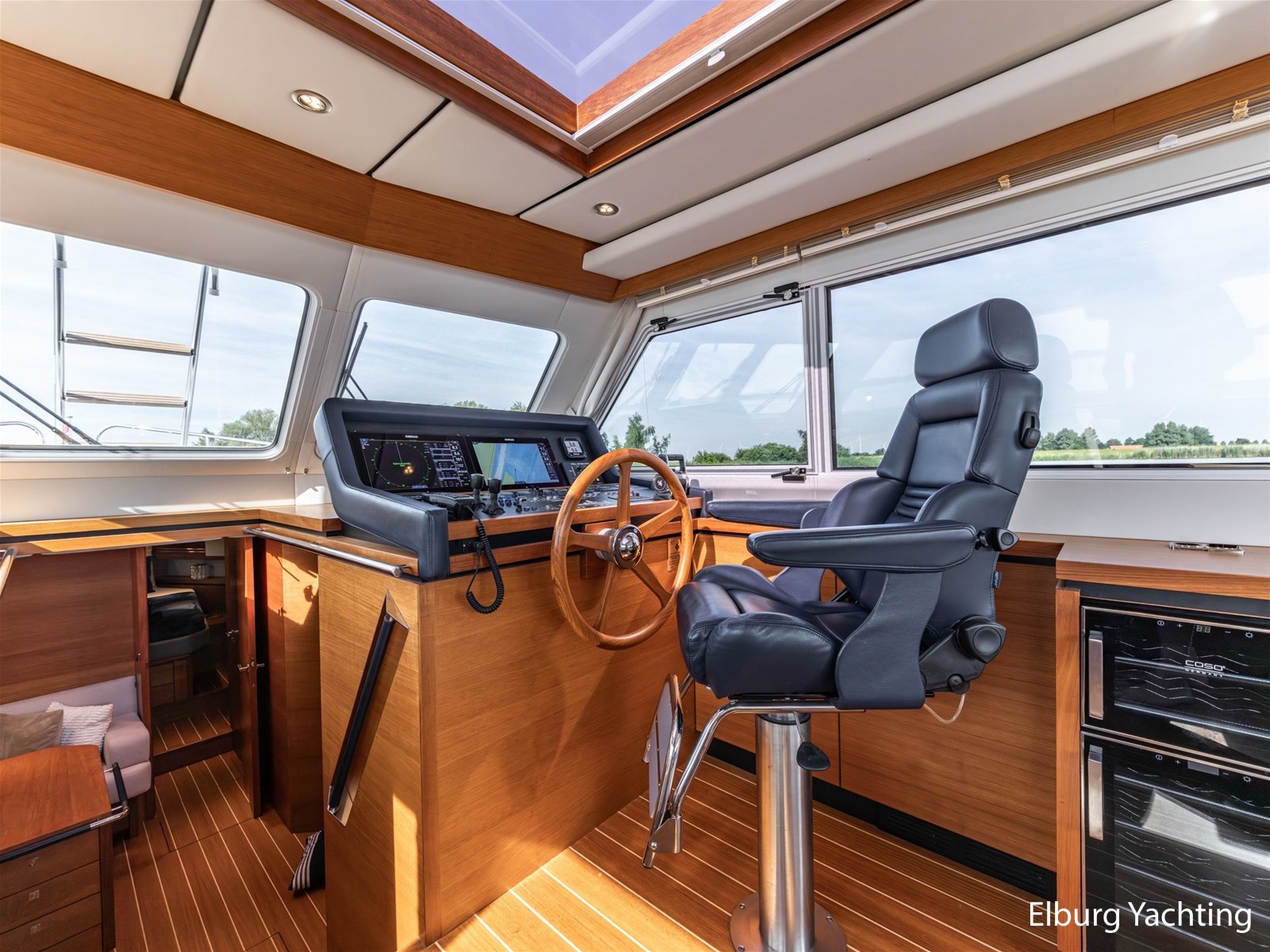

Steering position(s)

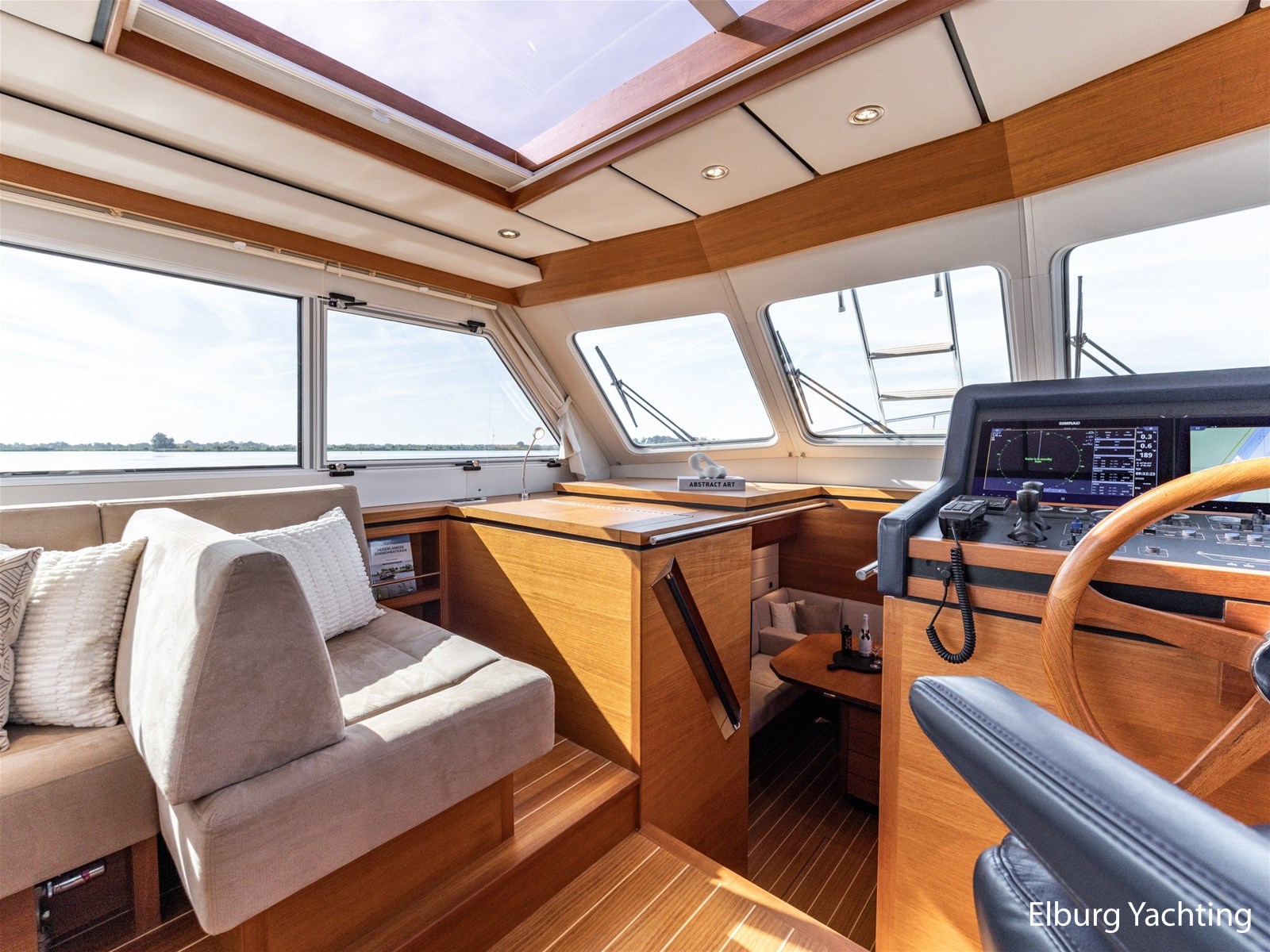

1 x hydraulic (wheelhouse)

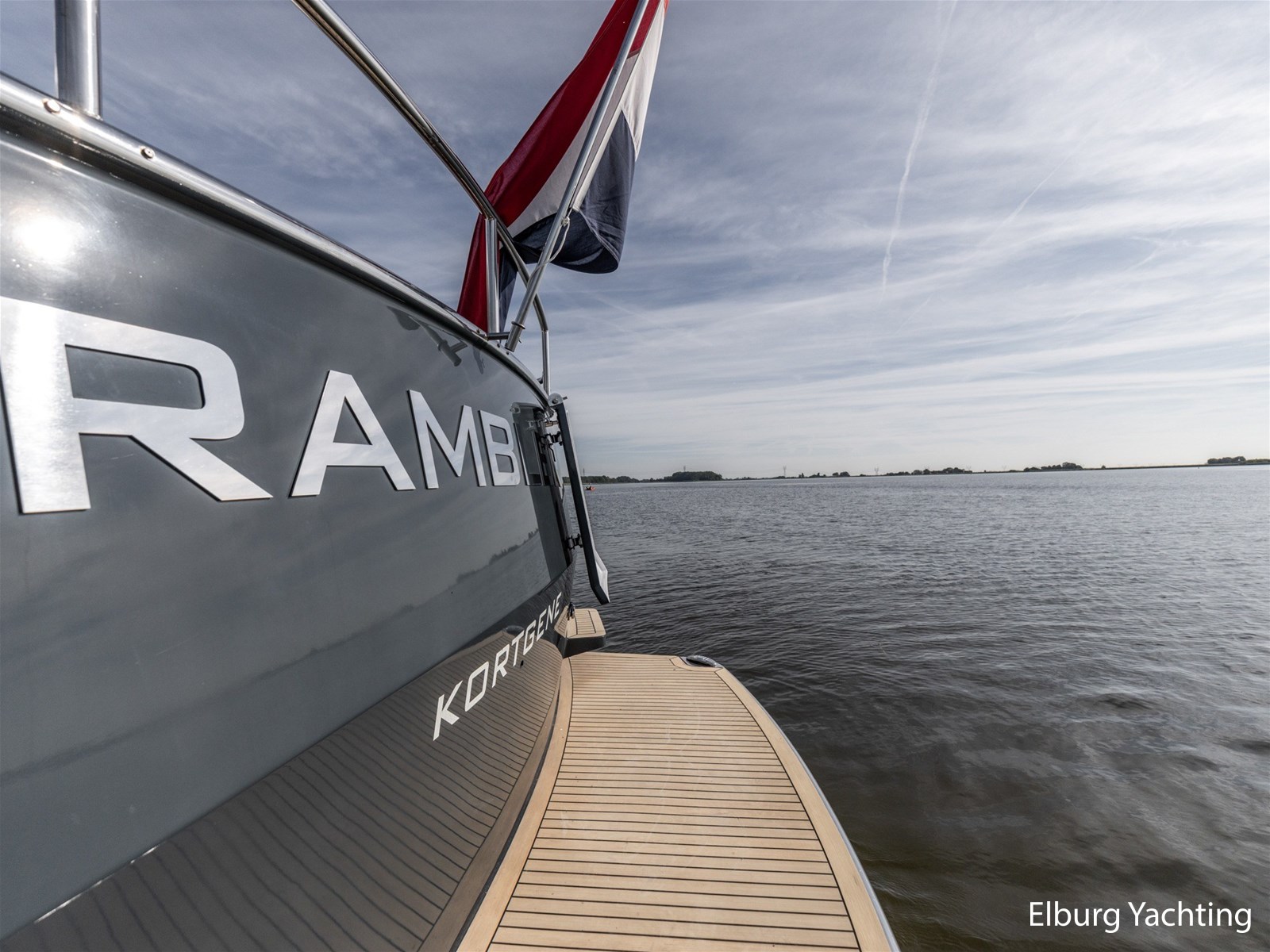

Bathing platform

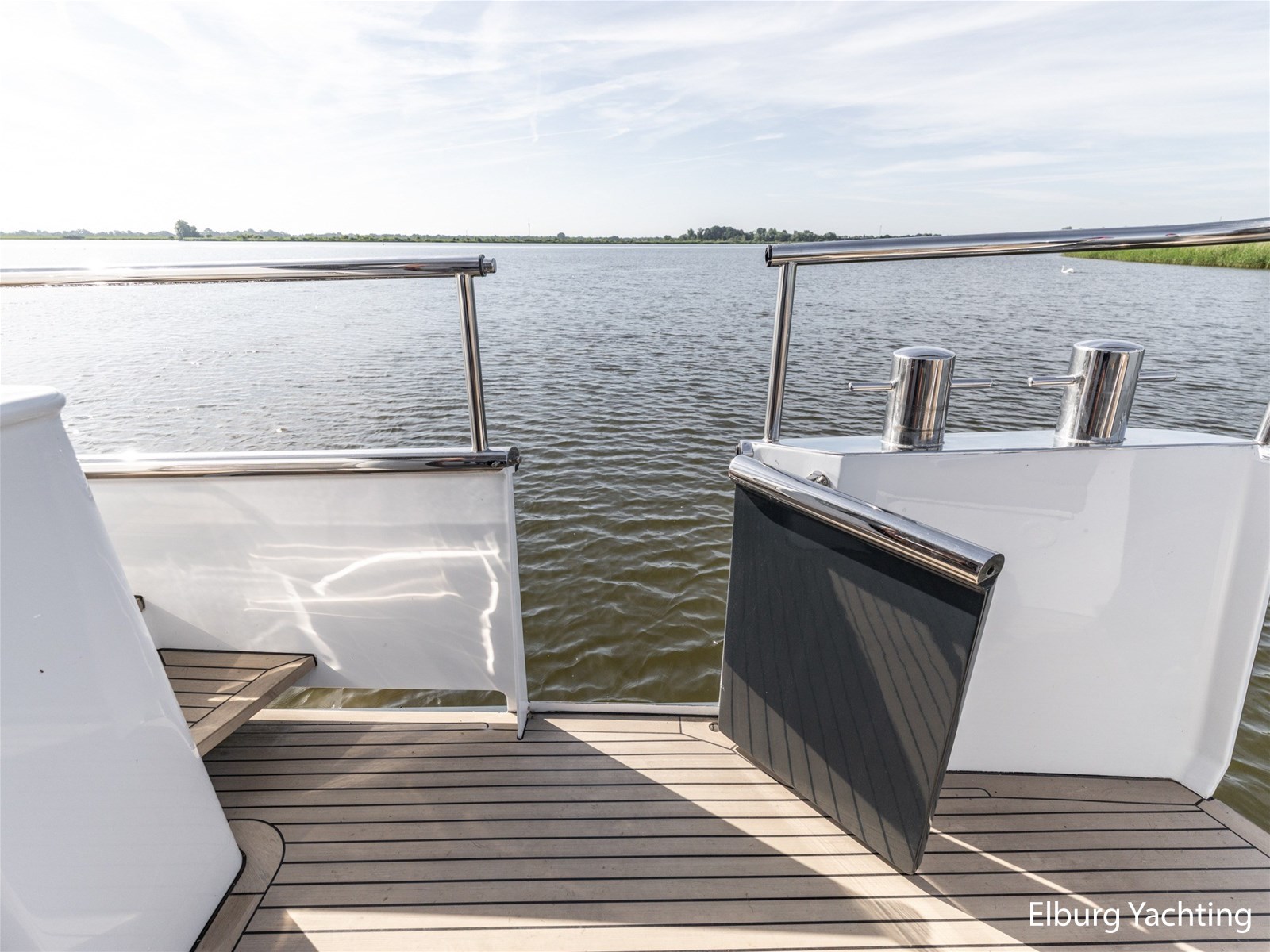

Integrated and applied with synthetic teak + stainless steel foldable bathing ladder

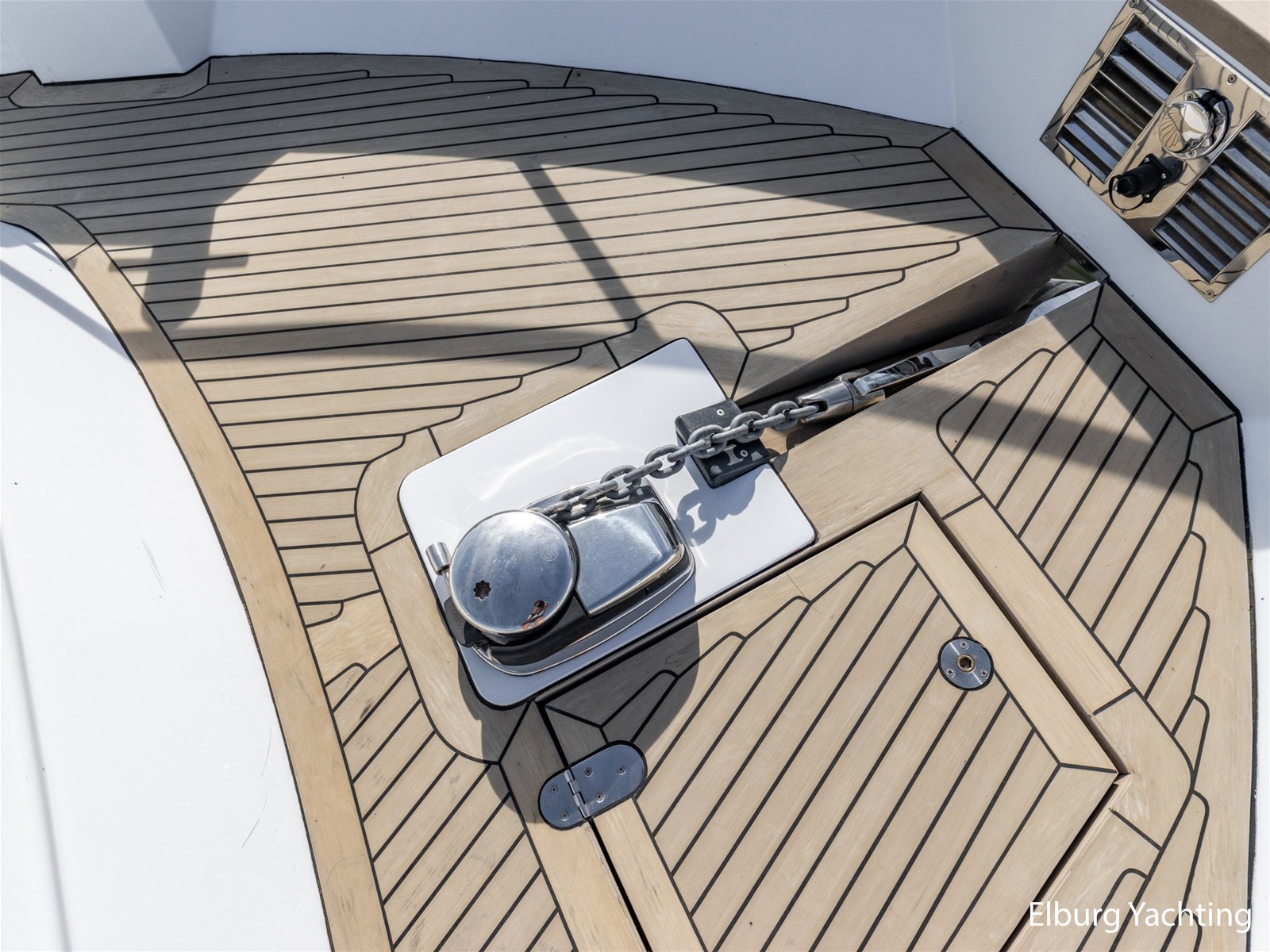

Anchor winch

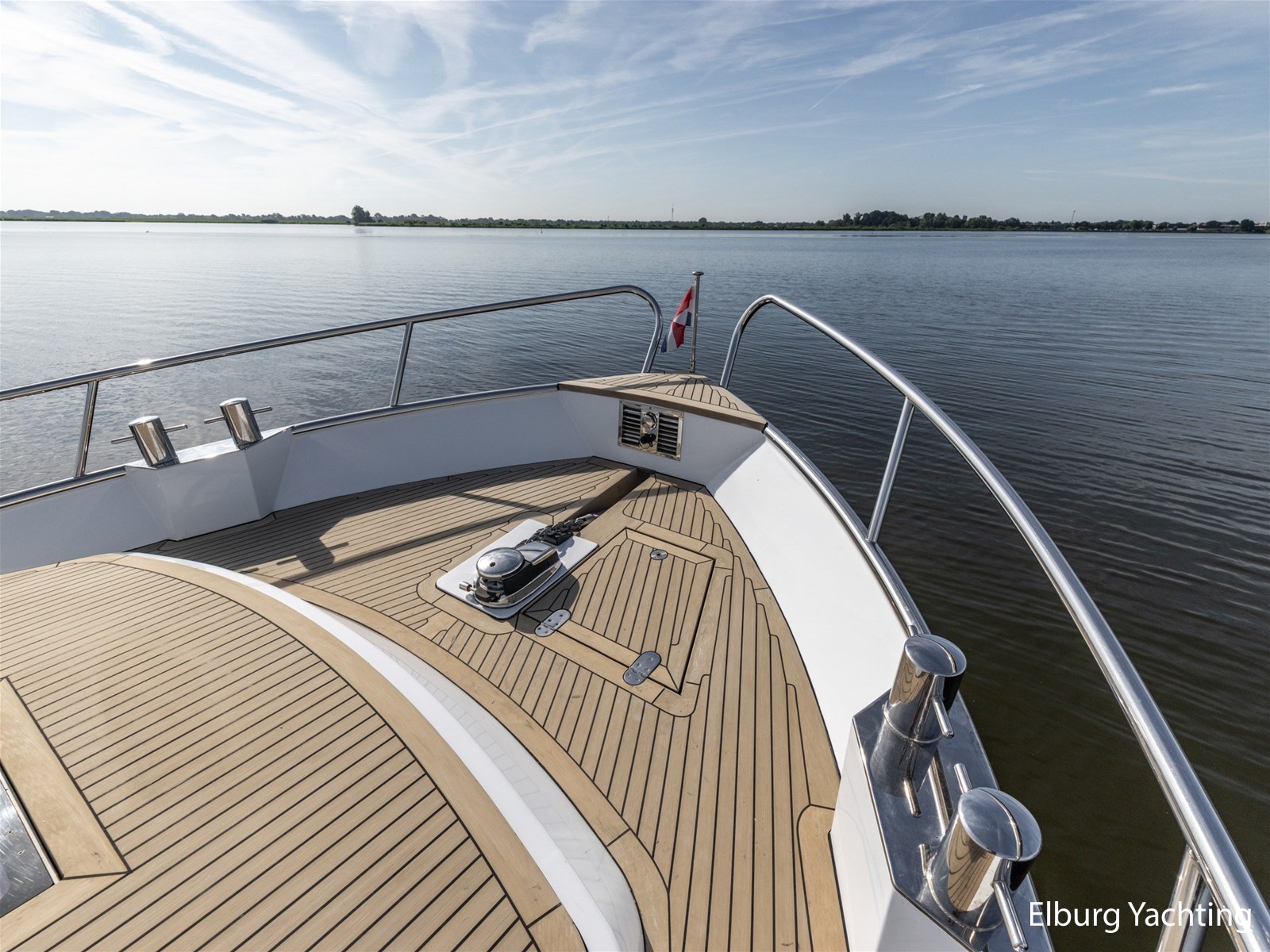

Quick hydraulic with 40kg anchor
Windowframes
Aluminum window frames with double glassed windows

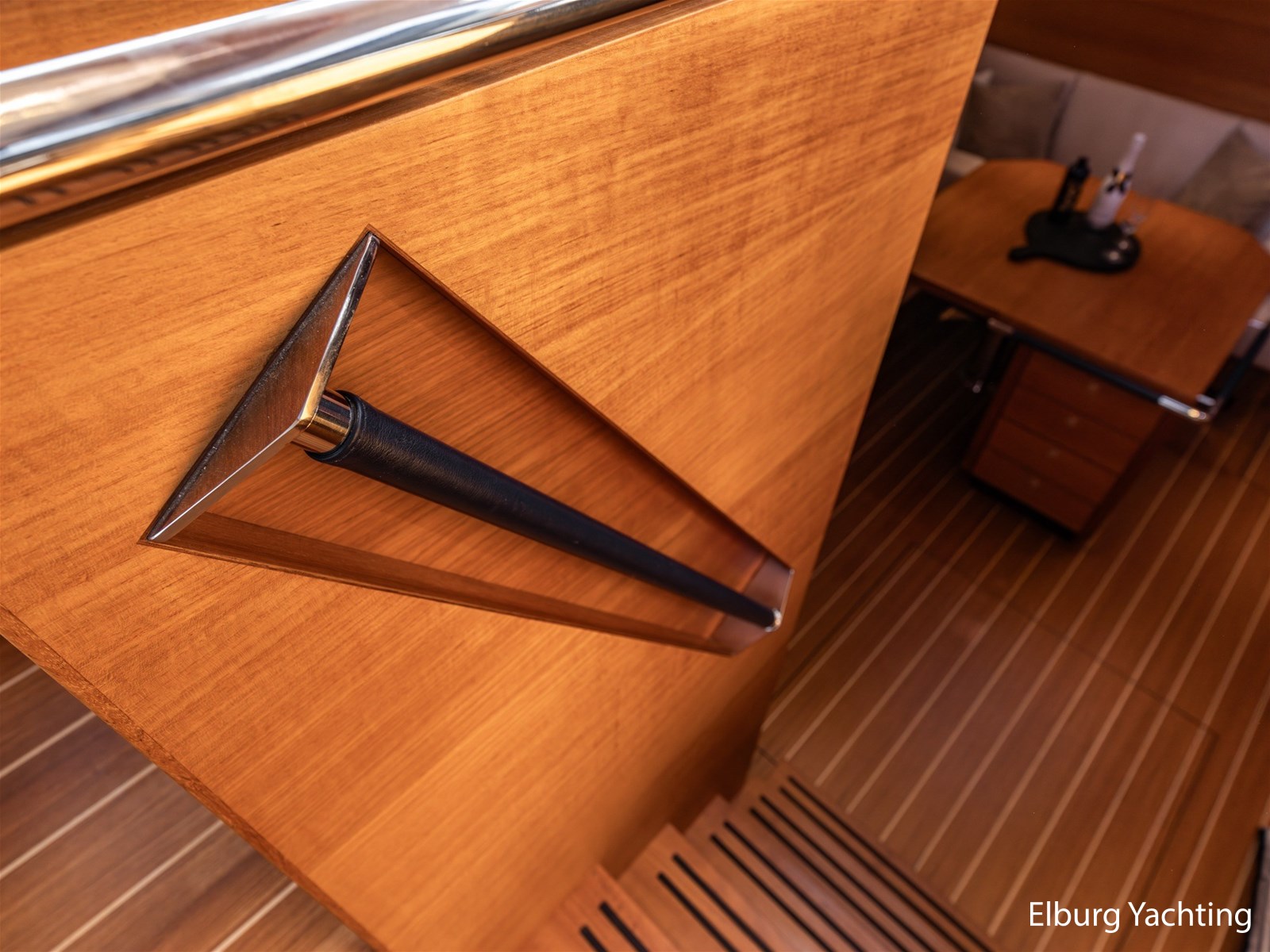

Interior
High quality teak wood ship interior

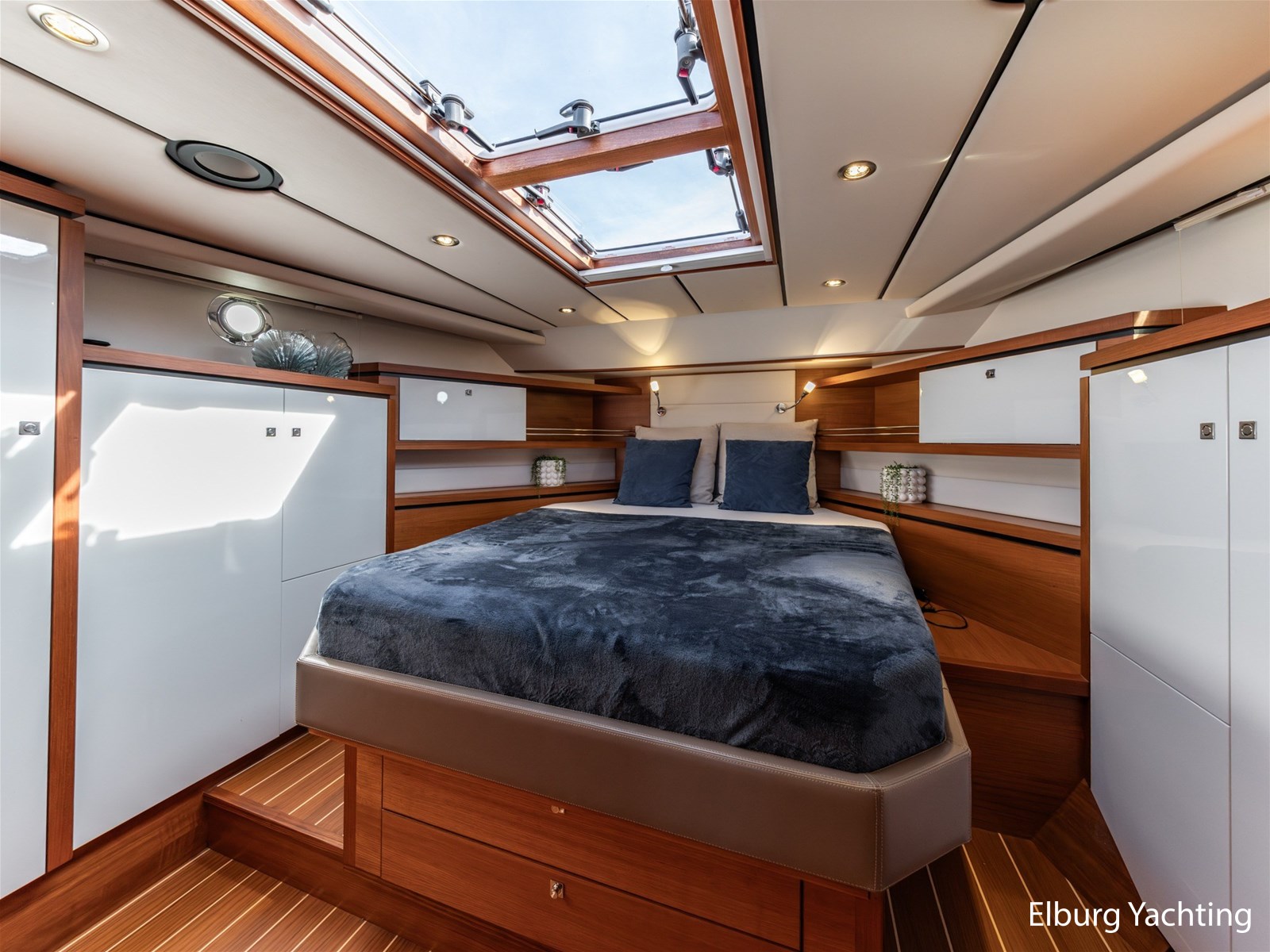

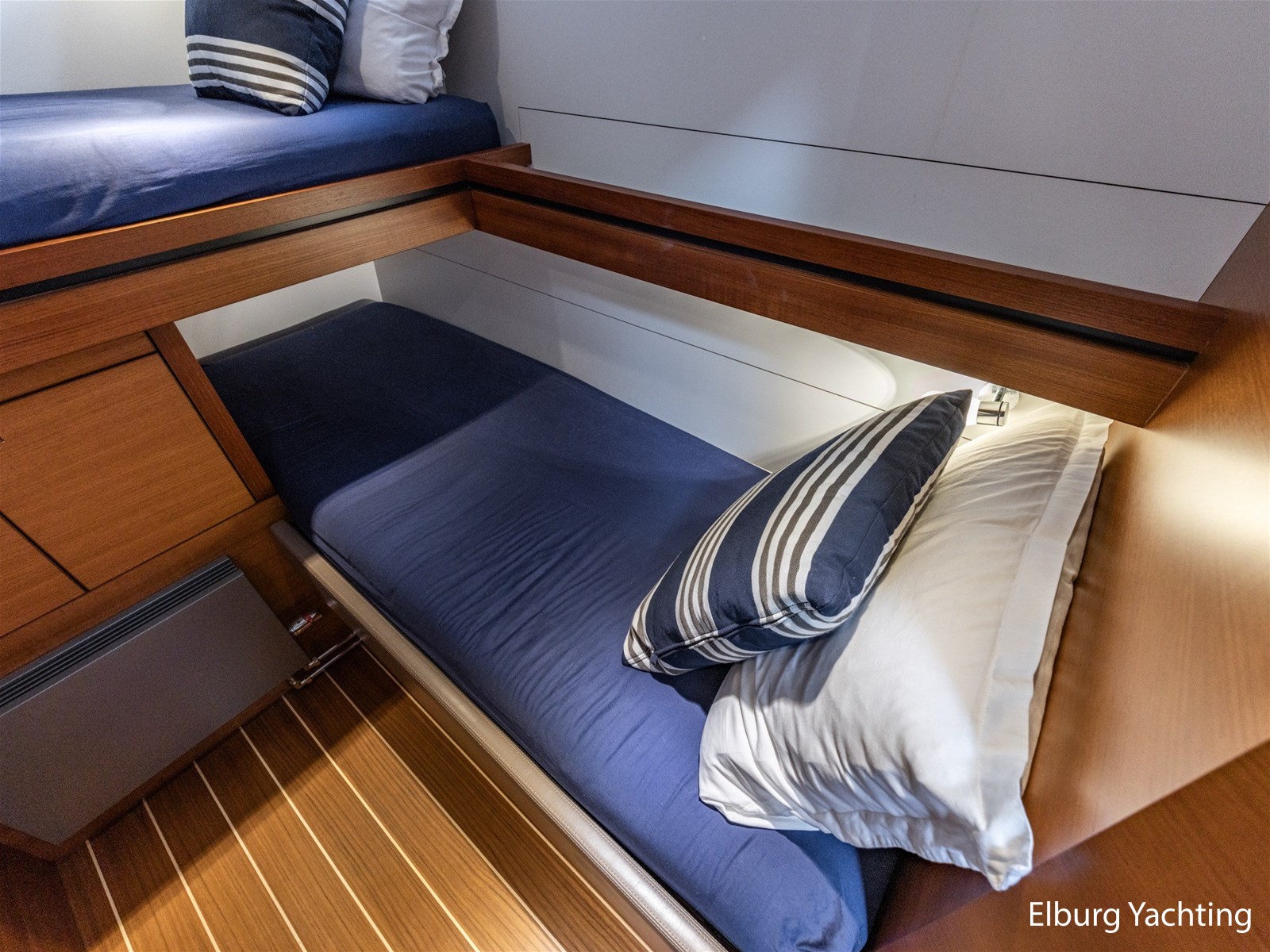

Berth(s)

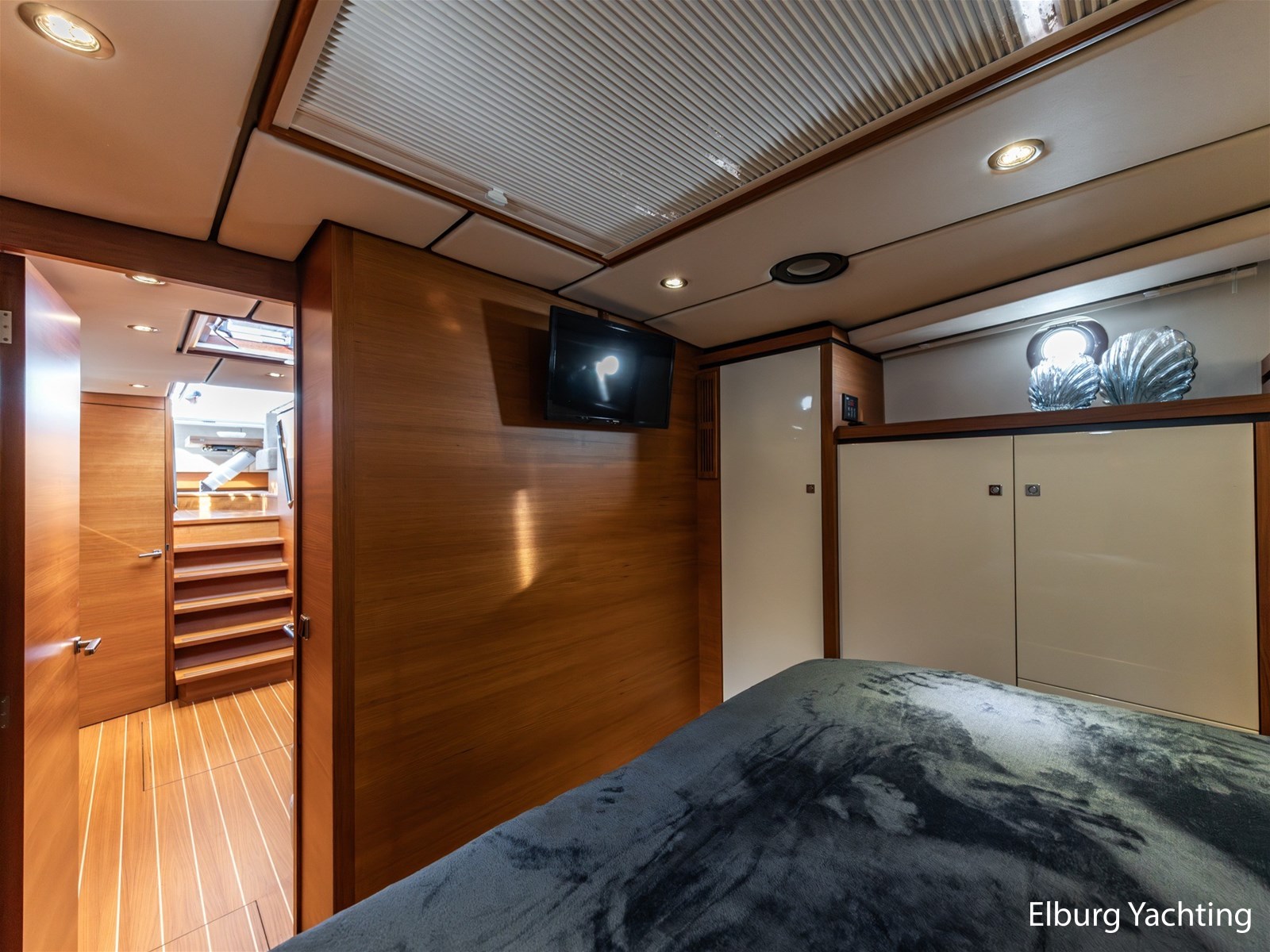

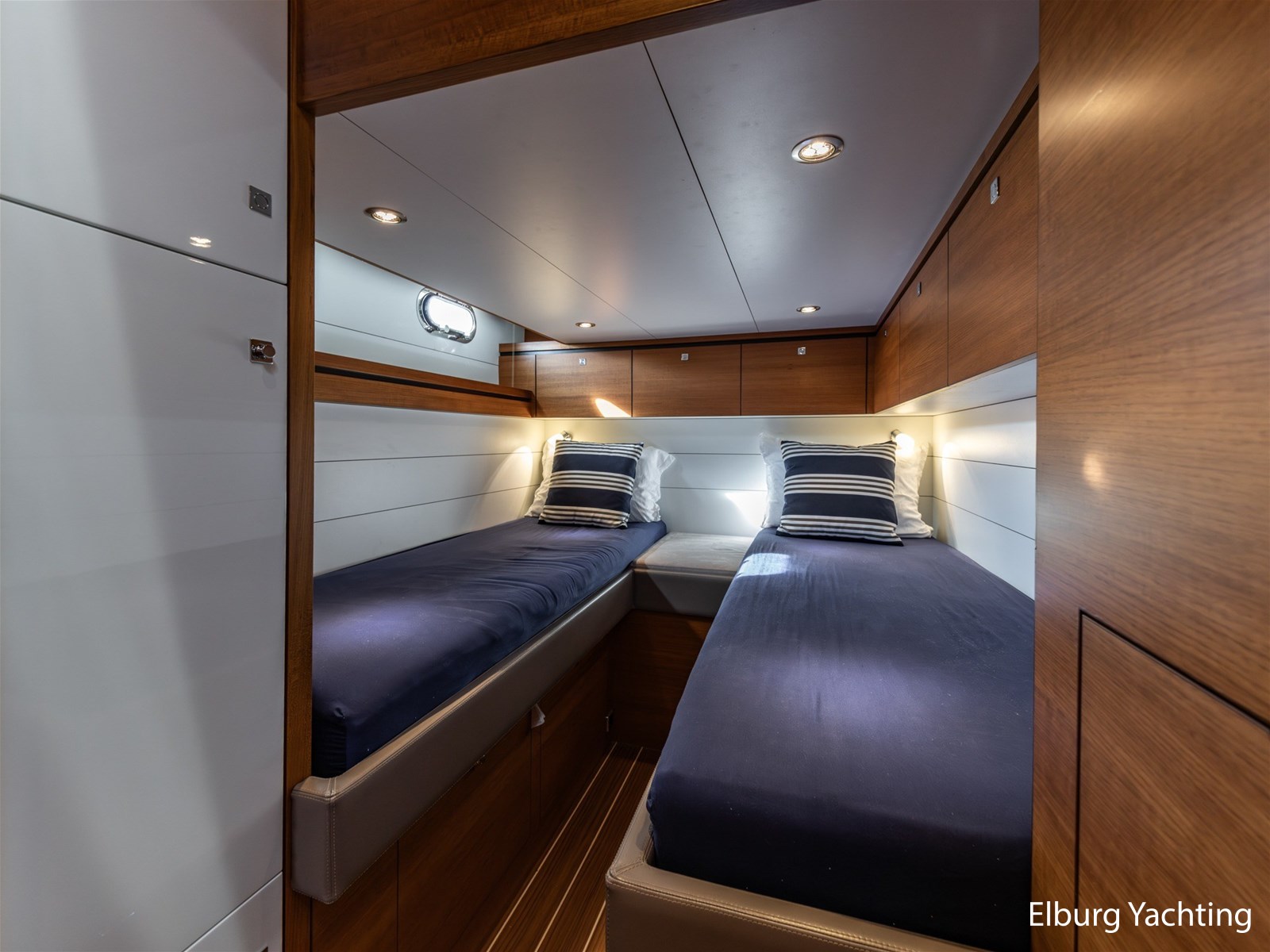

6 x fixed (1 x 2 pers. freestanding bed in front cabin + 2 x 1 pers. in SB-cabin + 2 x 1 pers. in PS-cabin)

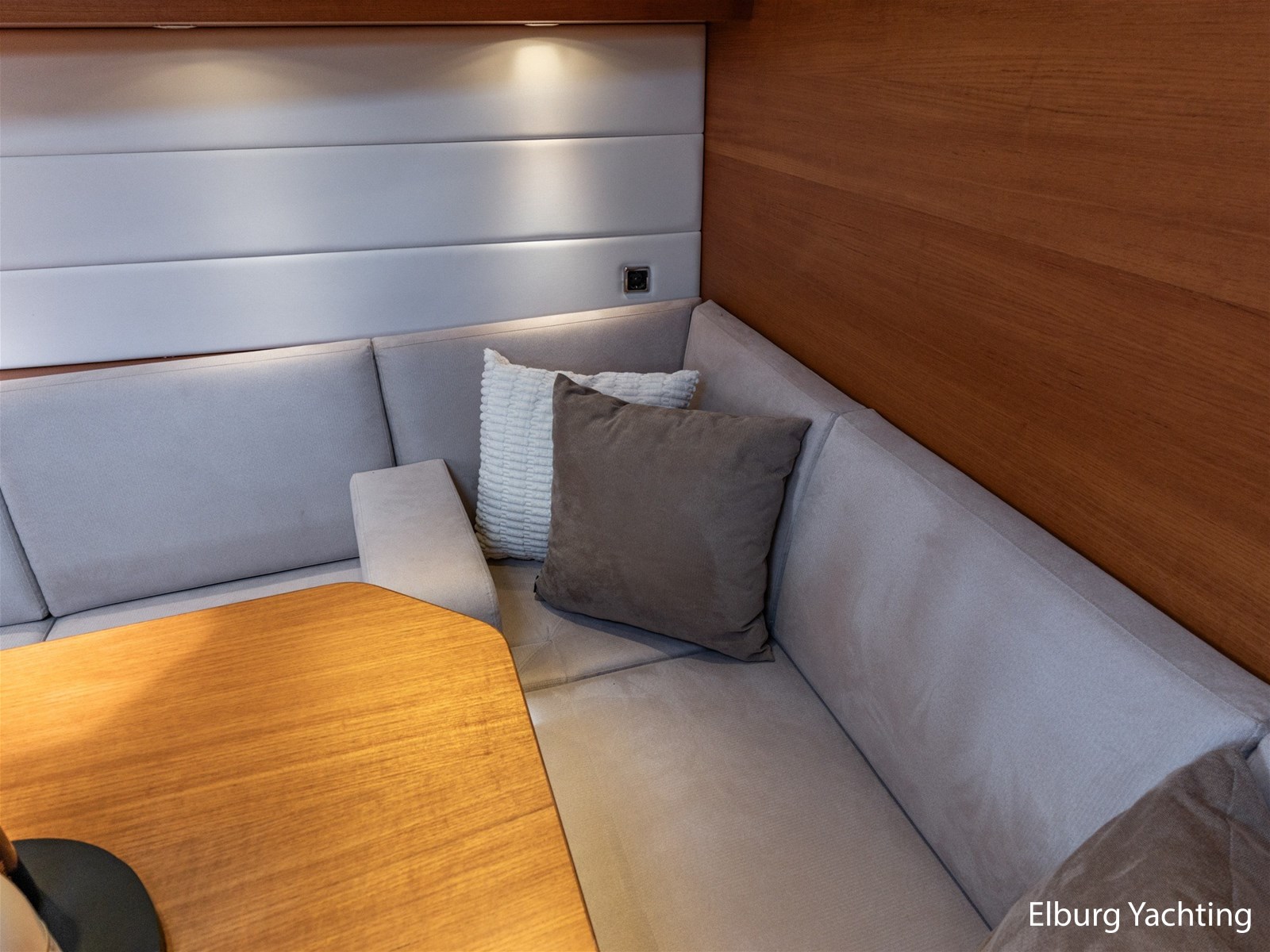

Dinette

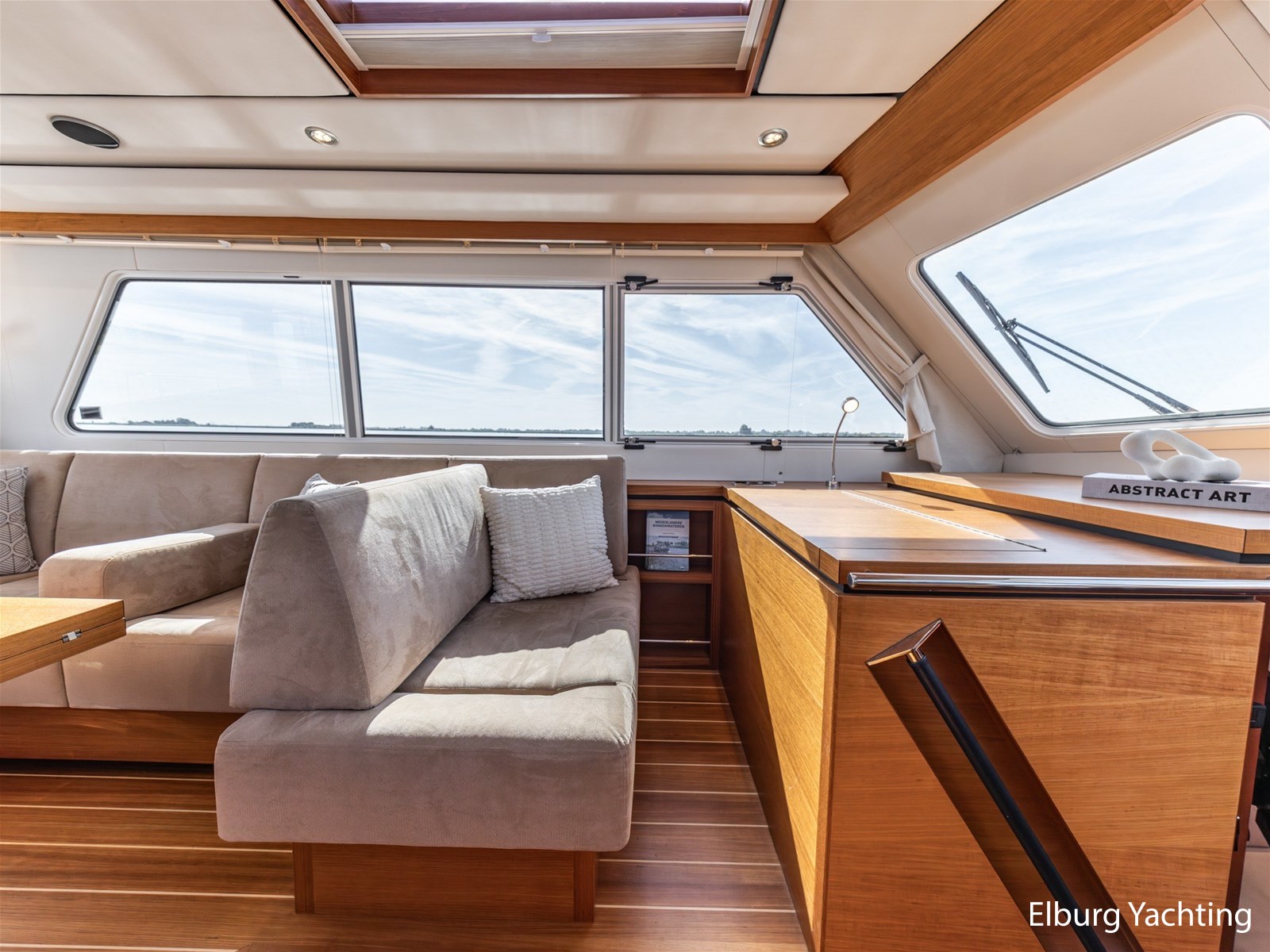

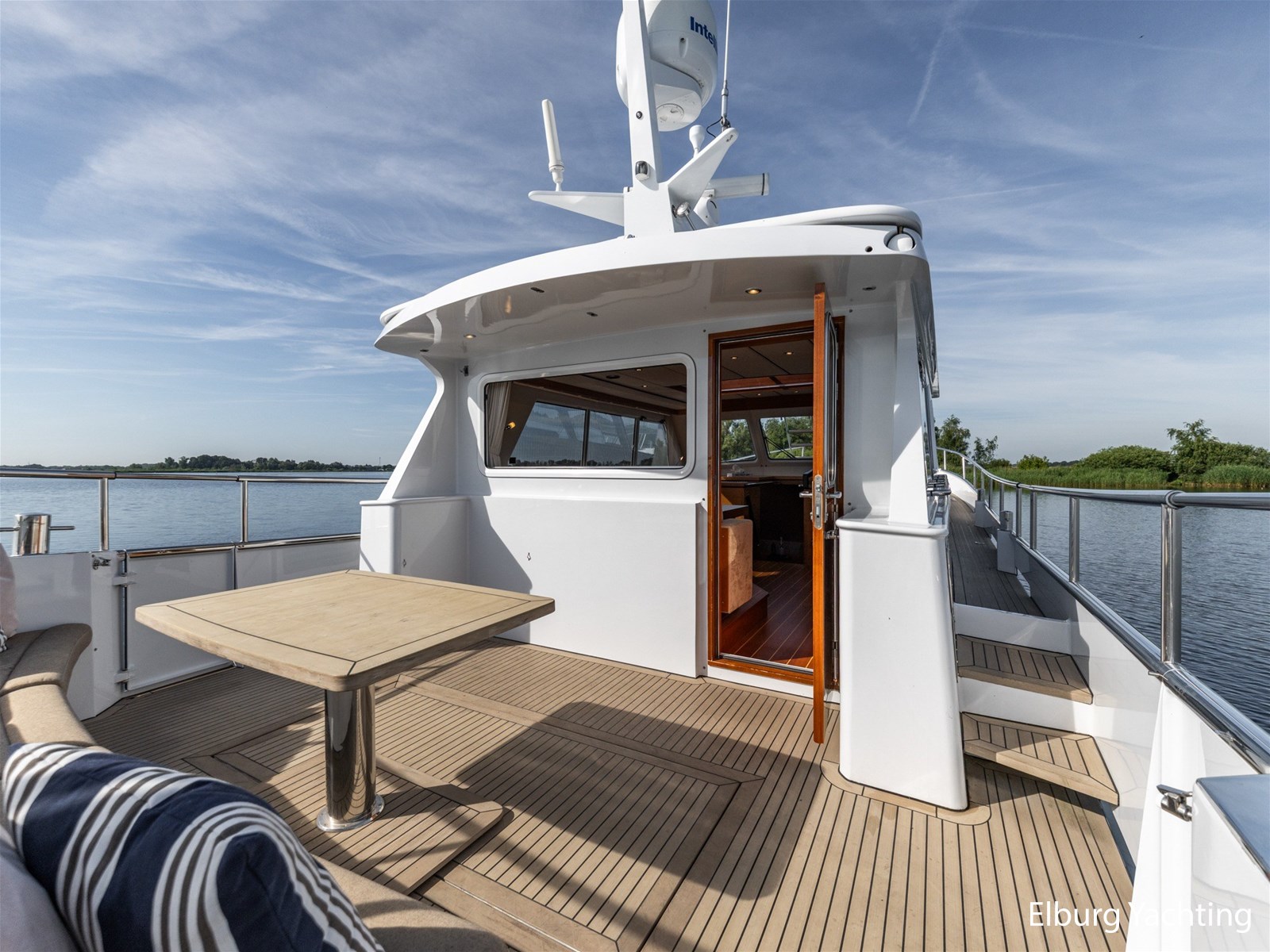

3 x (against galley, wheelhouse, aft deck)
Toilet
2 x Tecma electric

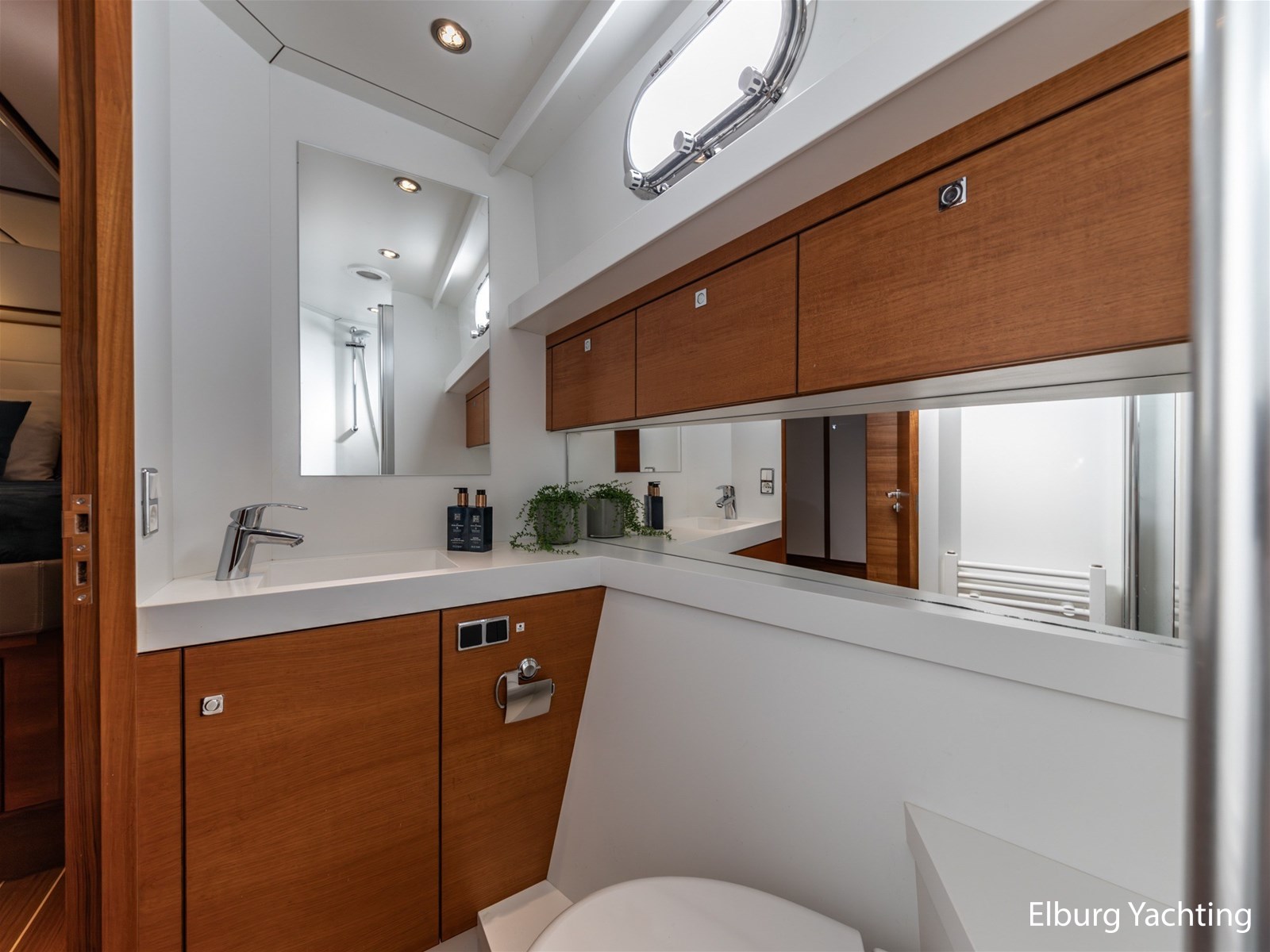

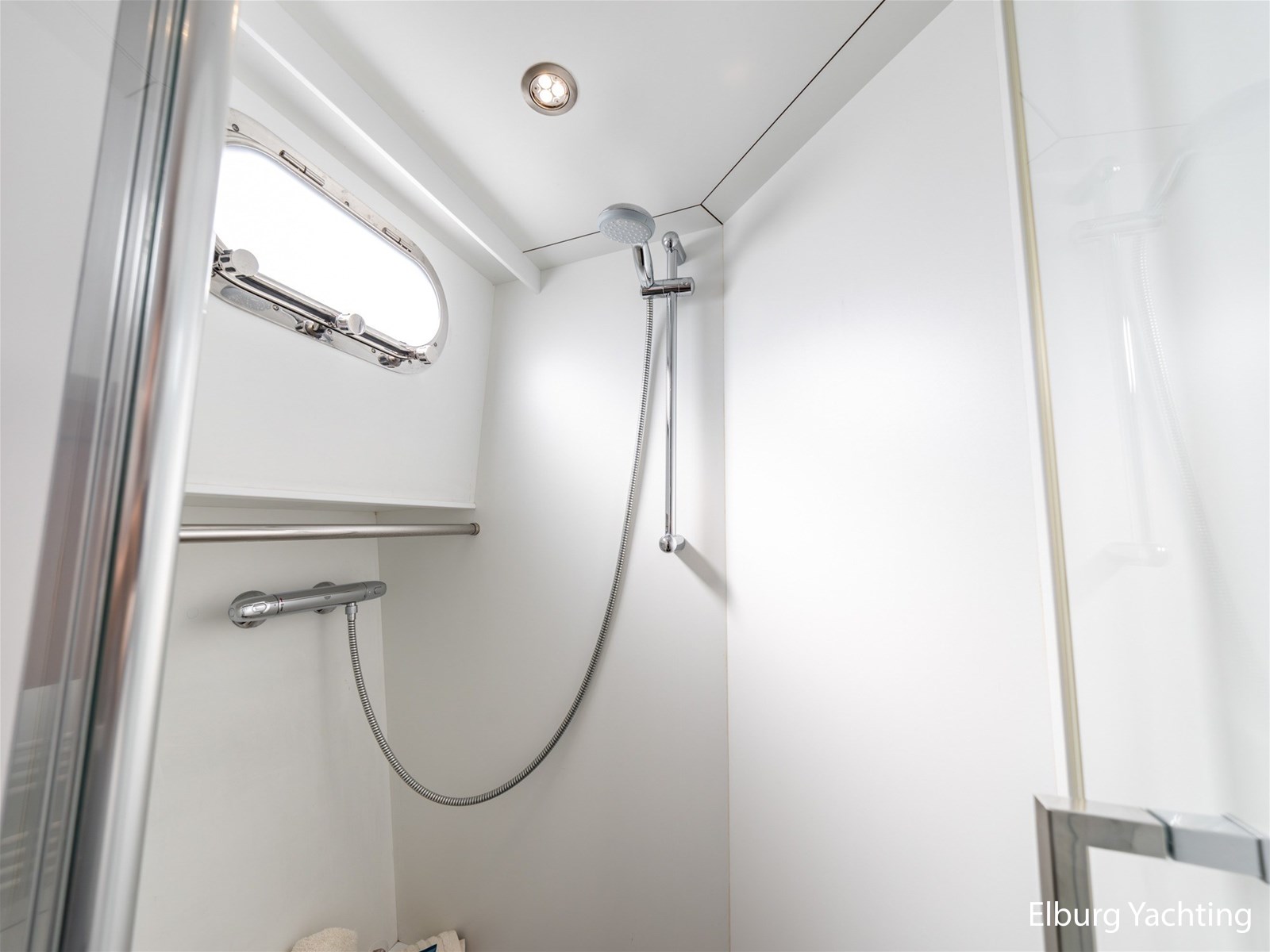

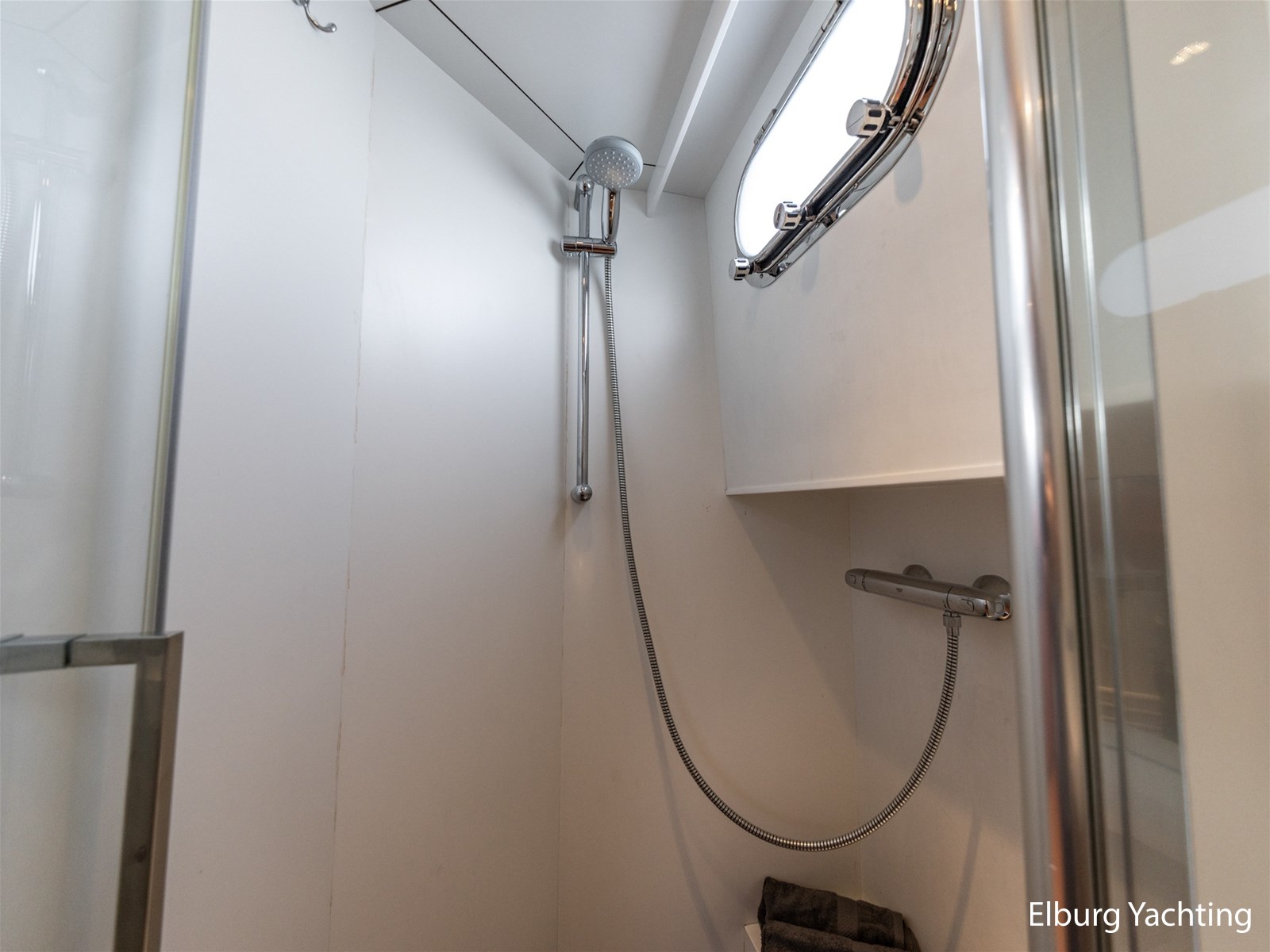

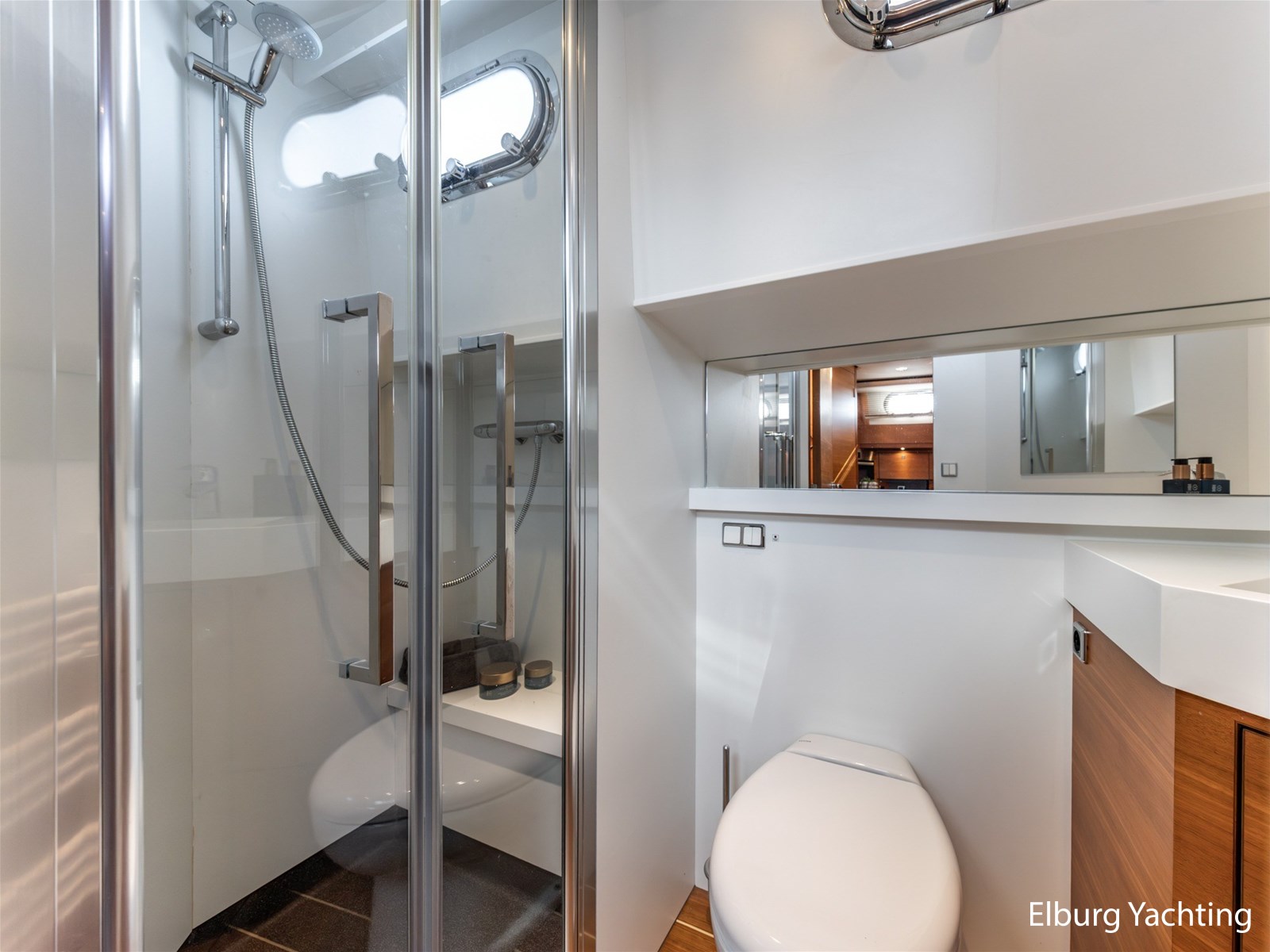

Shower
2 x in own cabin + 1 x outdoor shower

Water capacity
Appr. 1400 liters
Holding tank
Appr. 450 liters
Hot water system
Via Kabola hot water tap function
Heating system

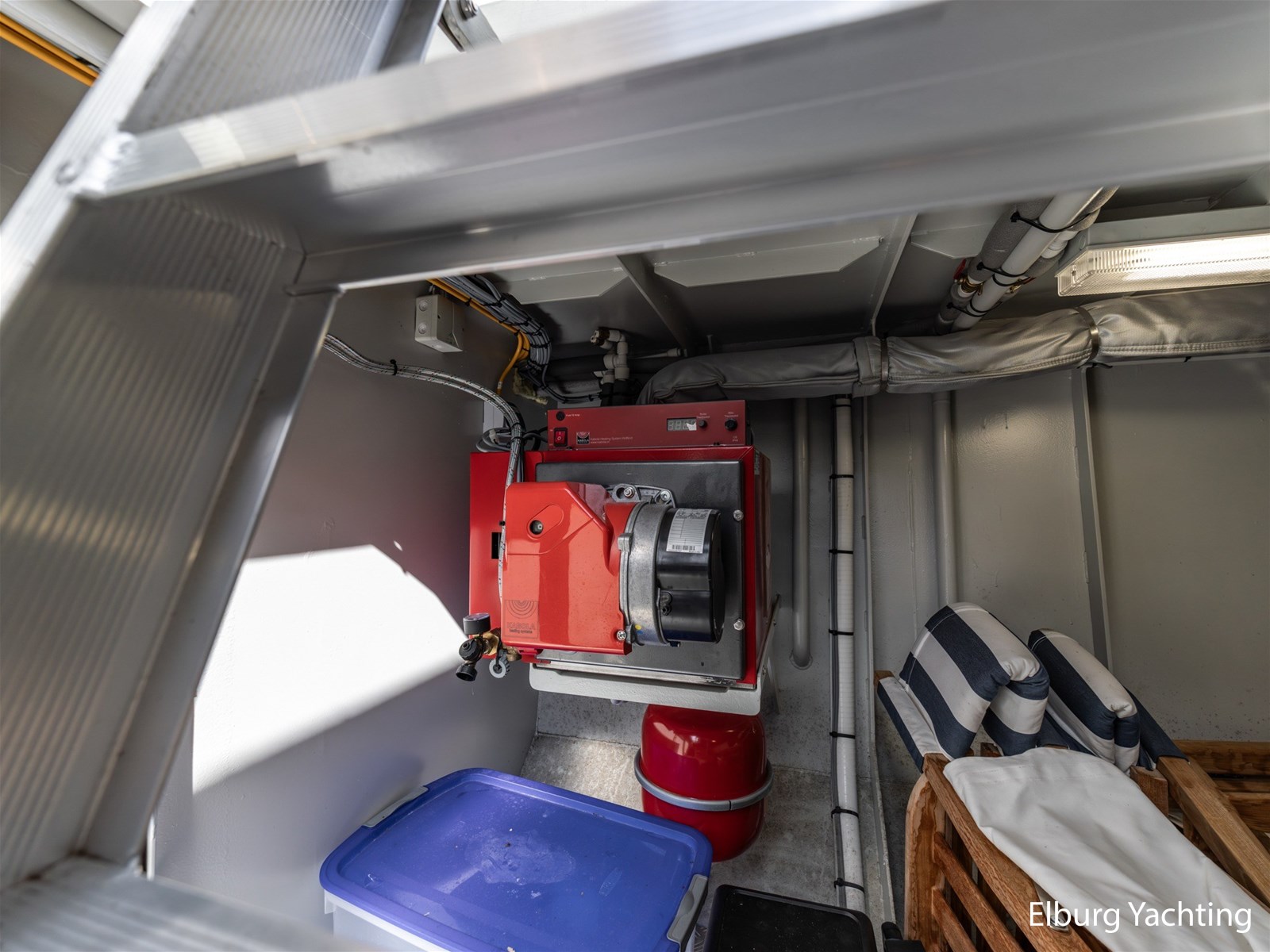

Kabola HR400 combi, under floor heating throughout entire ship + airconditioning in front cabin

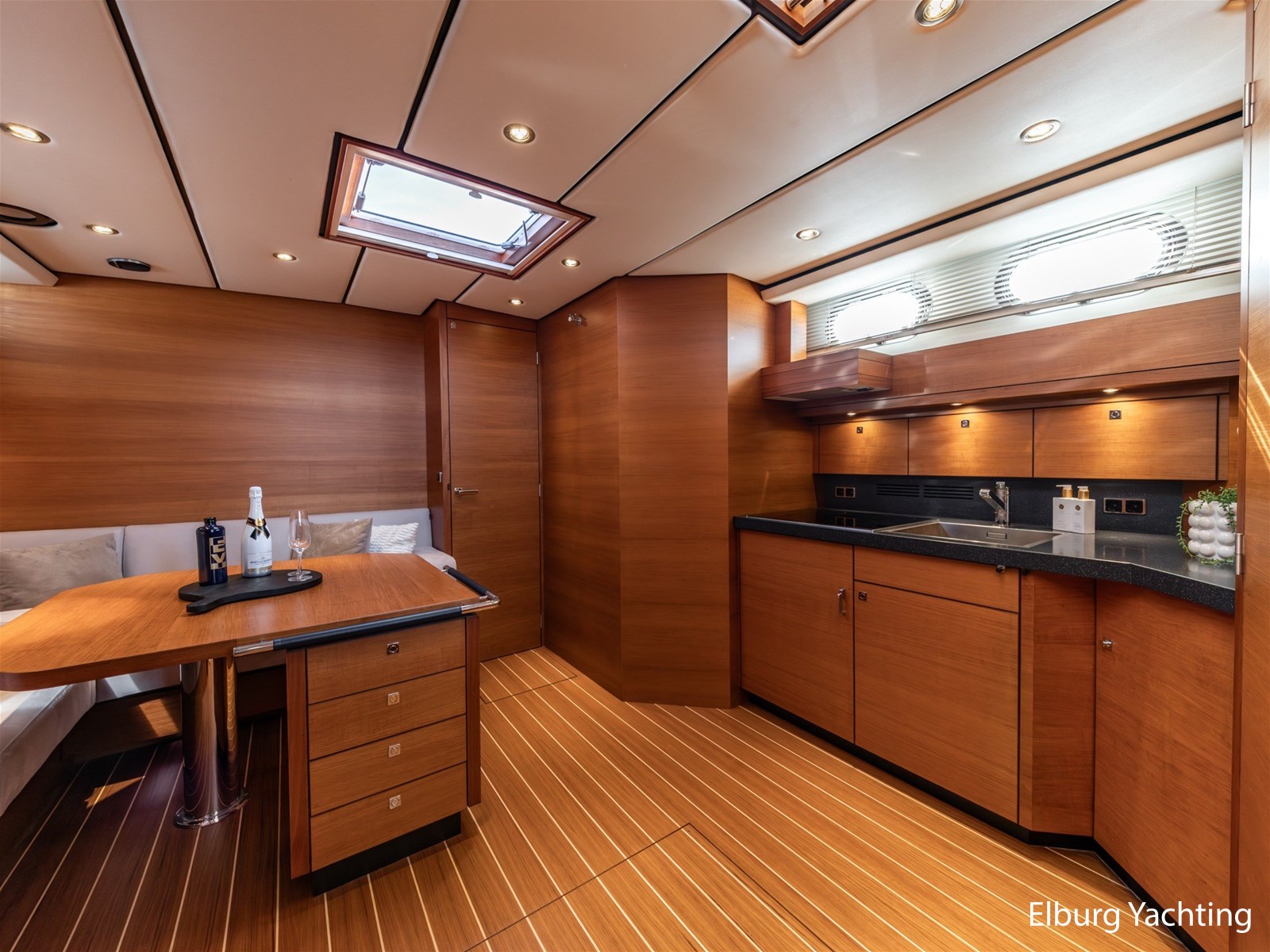

Cooking system

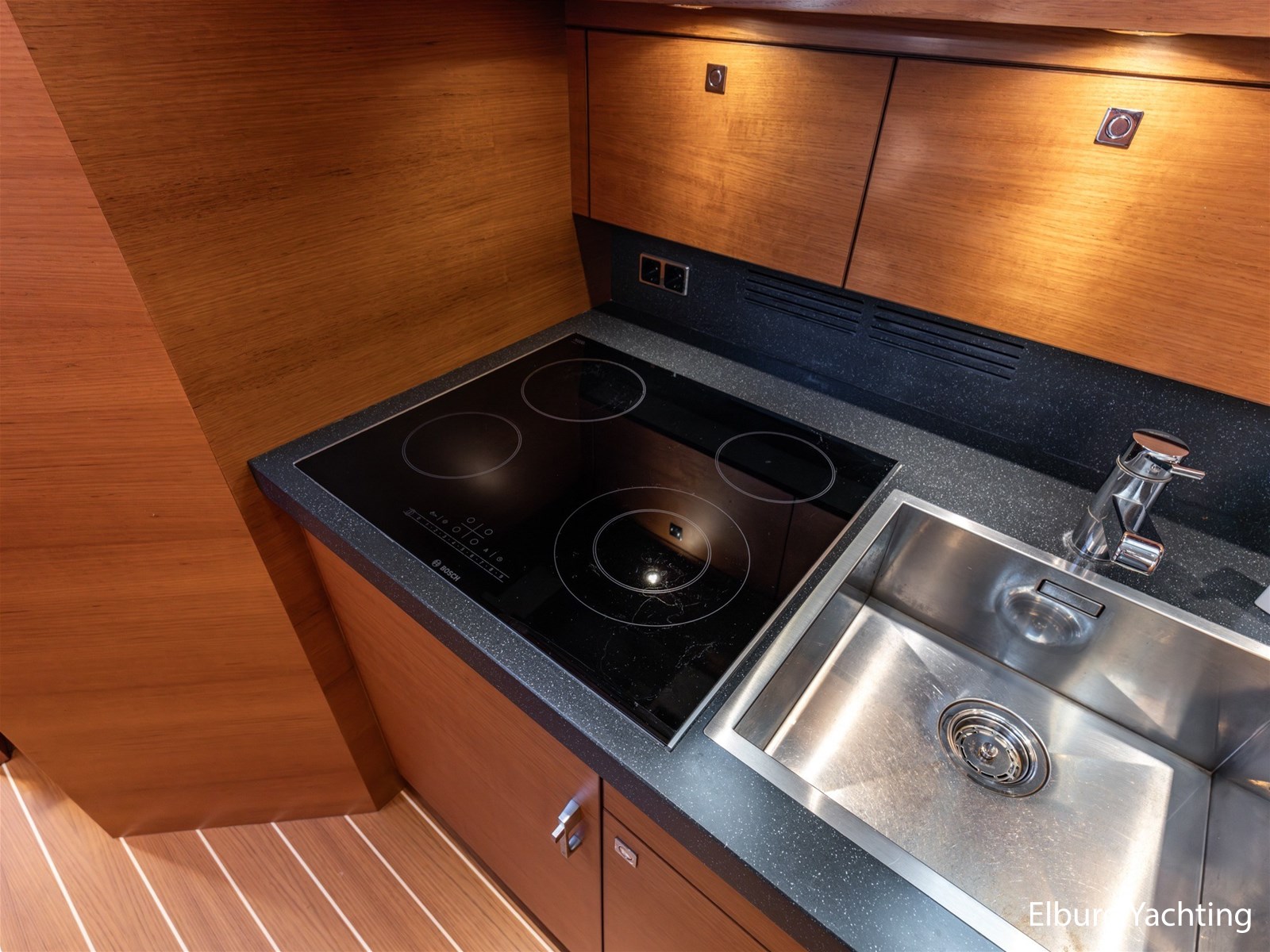

Bosch 4 zone induction + extractor

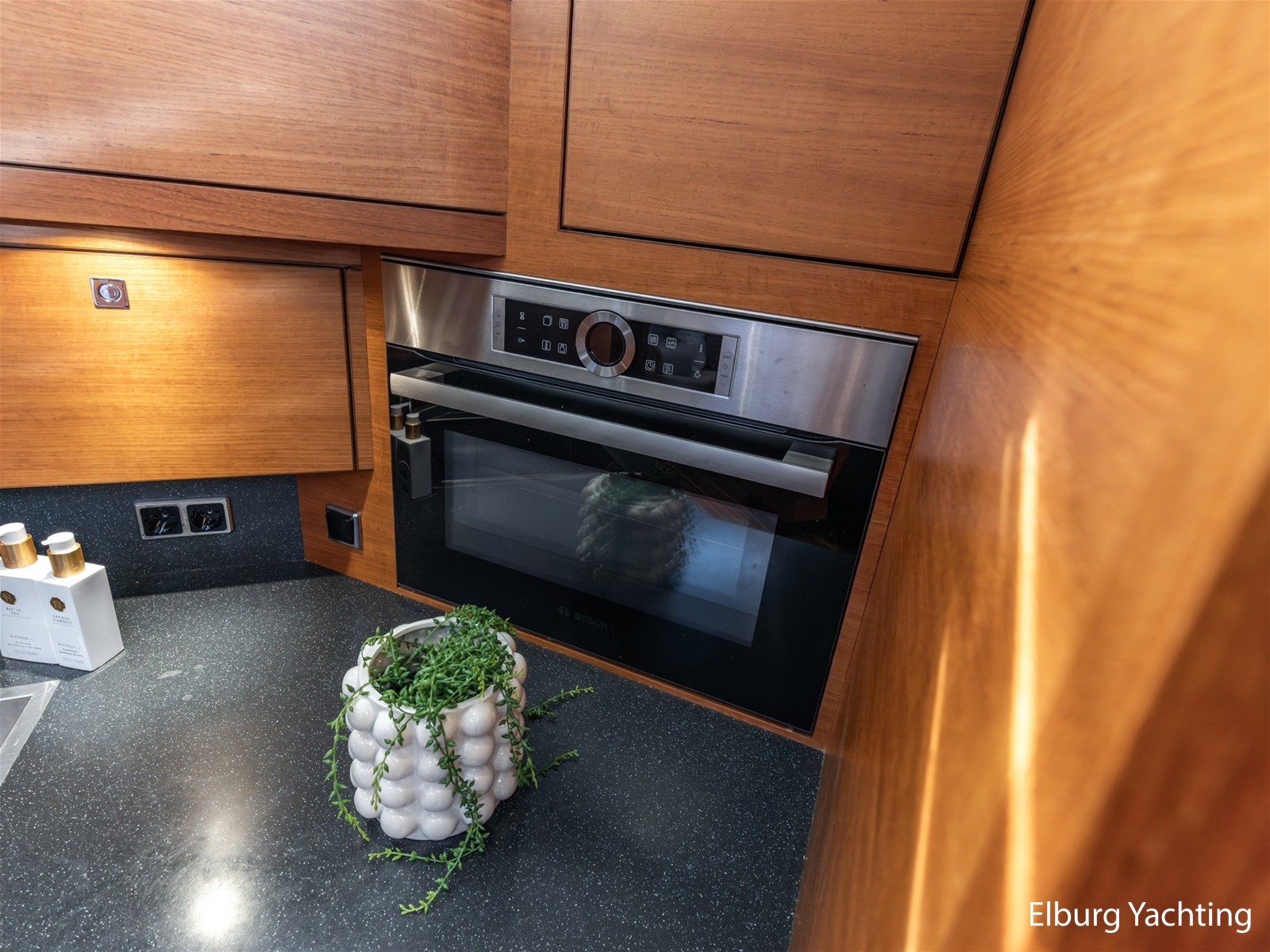

Microwave/oven
Bosch combi

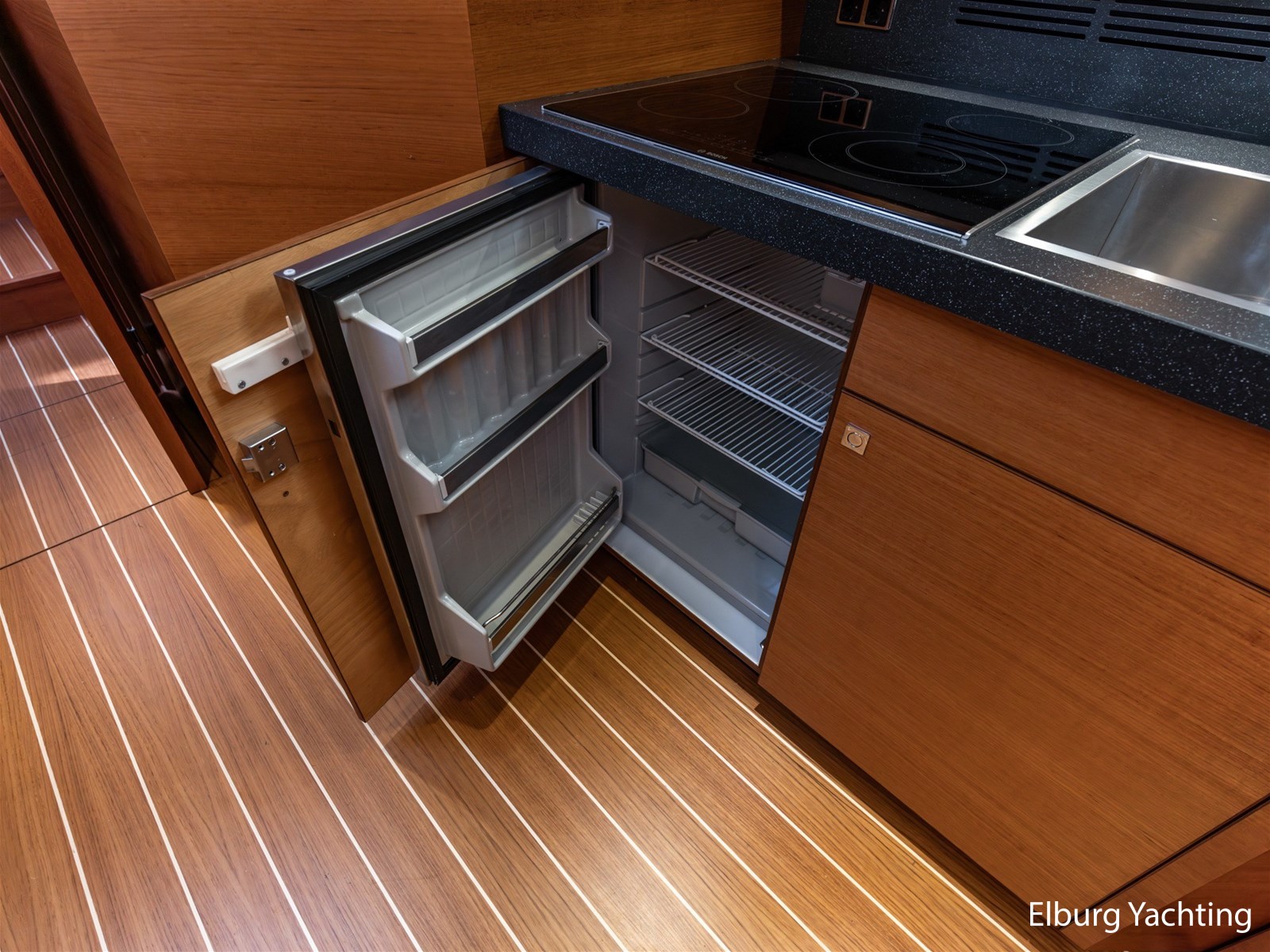

Fridge

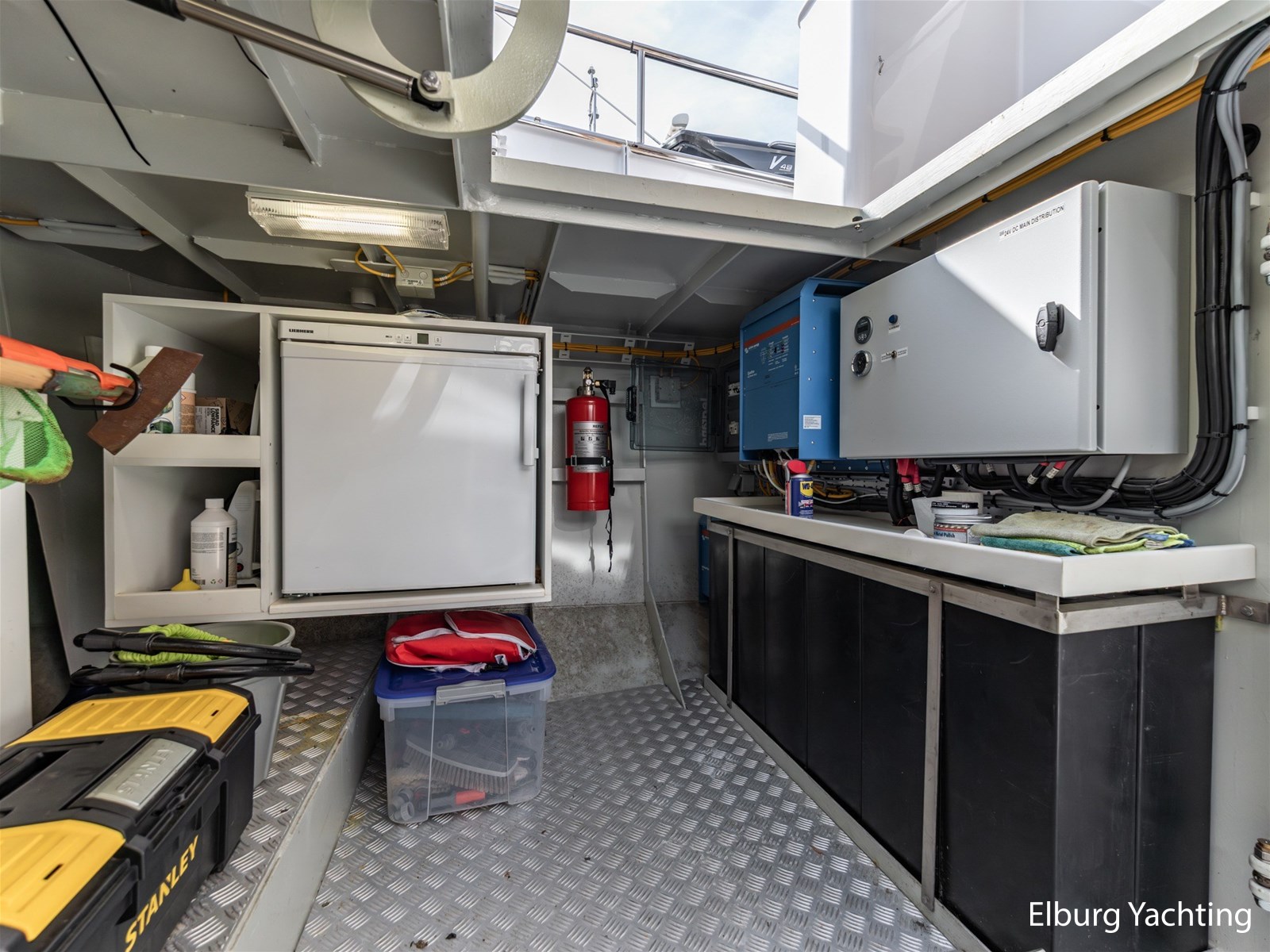

Isotherm fridge in galley + freezer in lazarette in aft ship, wine cooler in wheelhouse out of order

Compass
Via plotter
Log
Simrad IS40
Echosounder
Simrad IS40
VHF
Simrad HS90 + Simrad HS35

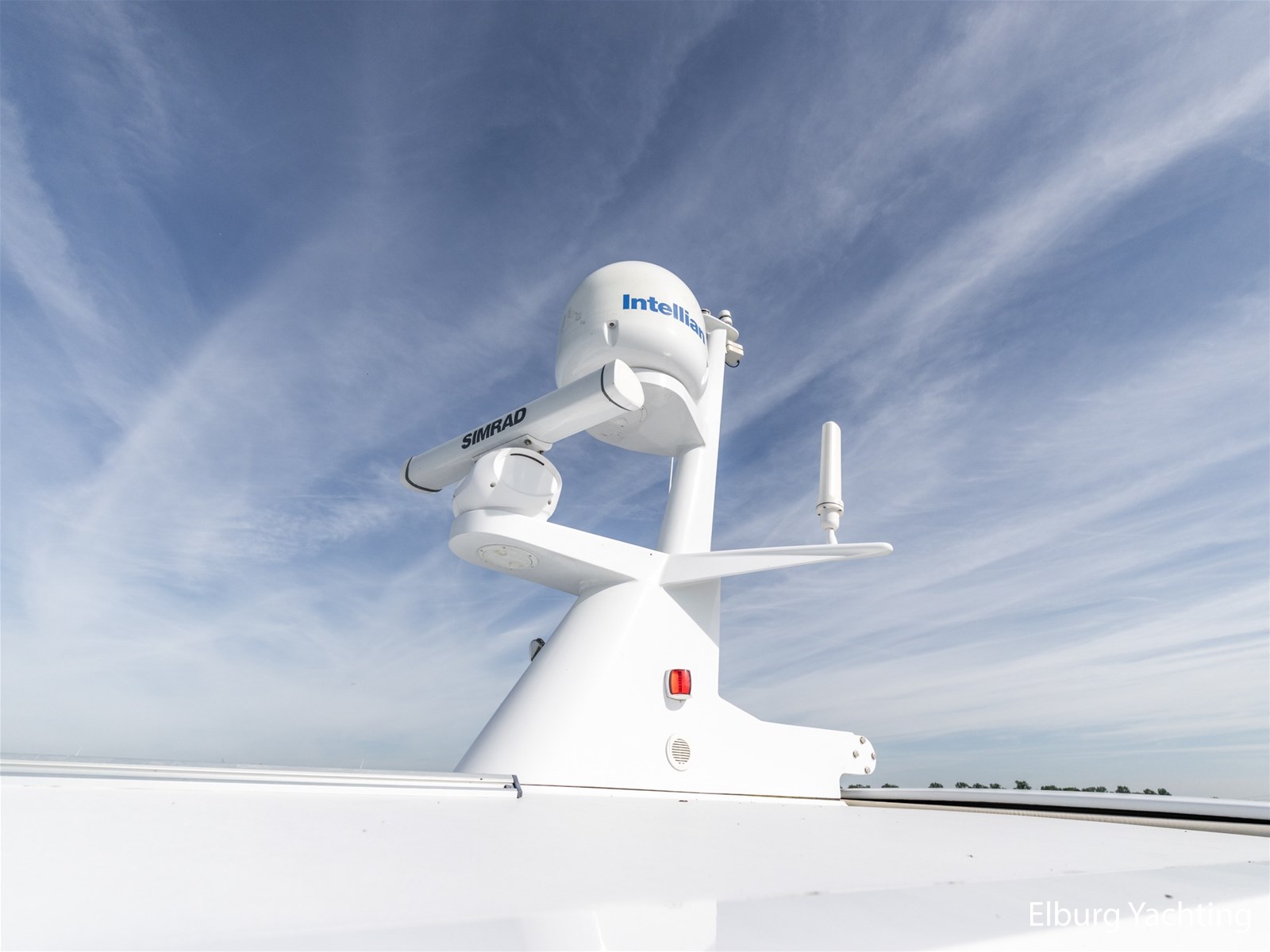

Radar

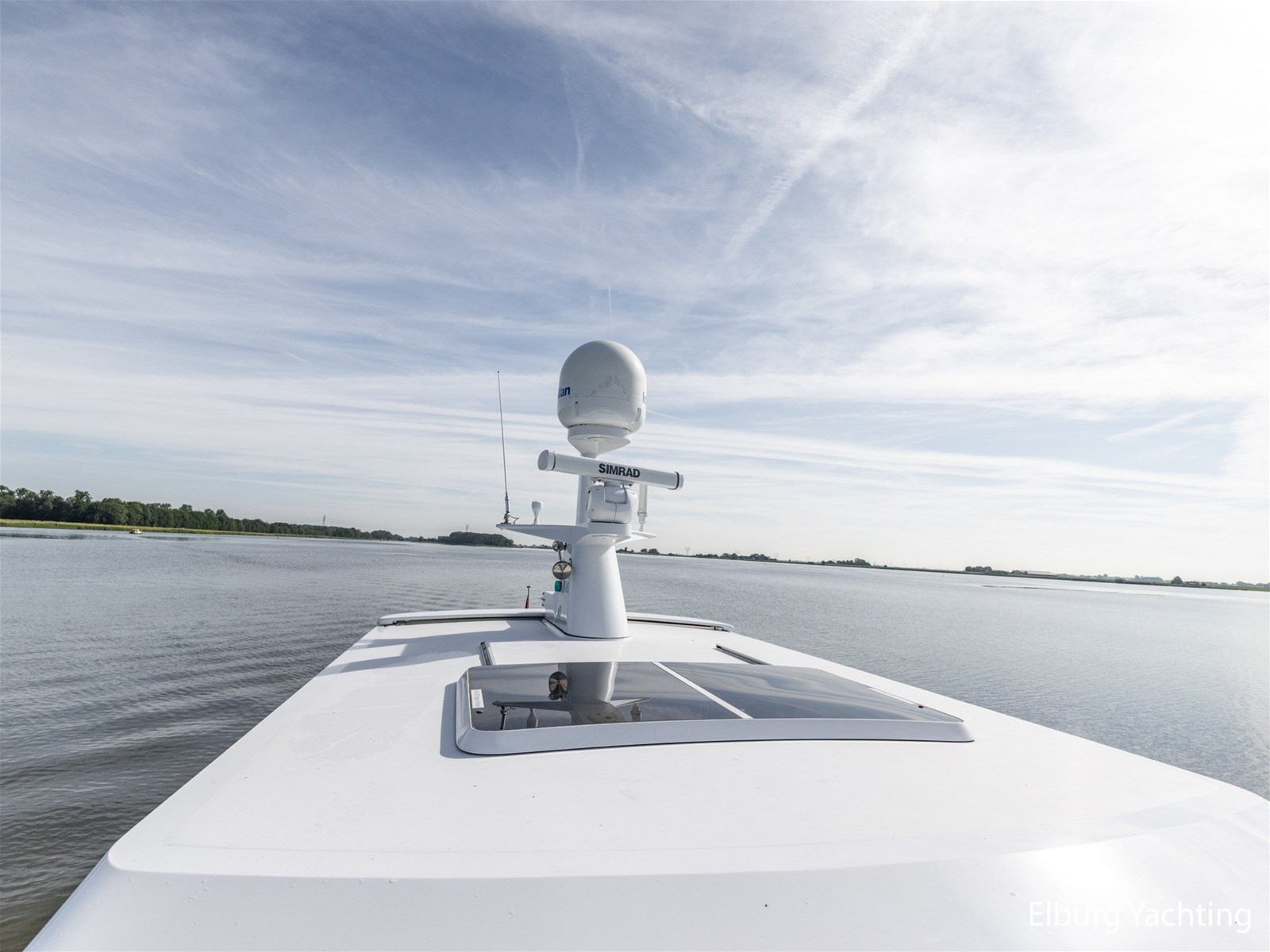

Simrad
Autopilot
Simrad AP24 + afstandsbediening
G.P.S.
Simrad

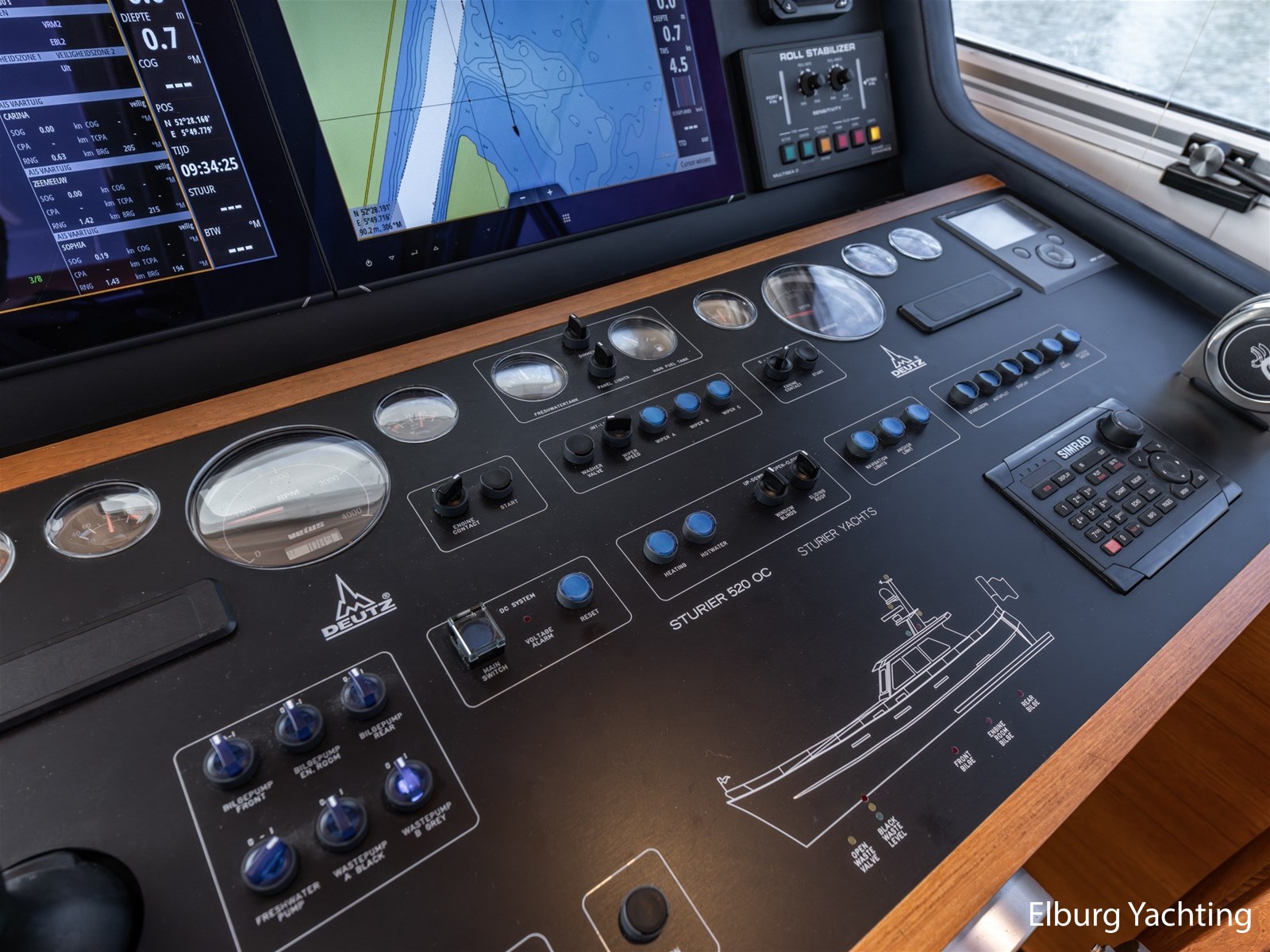

Plotter

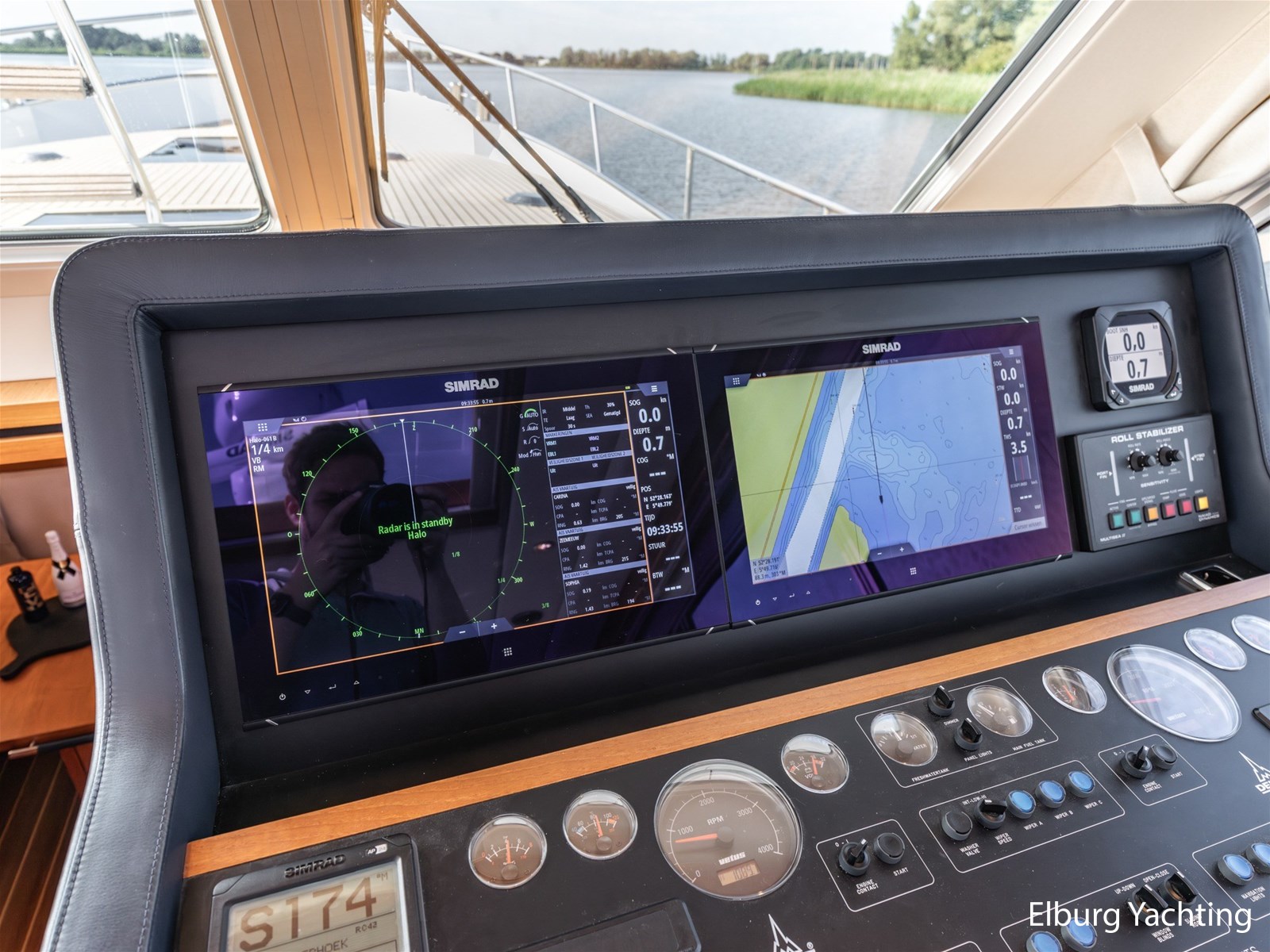

2 x Simrad NSO evo2 glass-bridge display

Engine hours
Appr. 1050 hours
Fuel capacity
Appr. 3000 liters
Gear box
ZF type 63 V, hydraulic + EMC
Bow thruster
Hydraulic proportional with hold function + Hydronautica remote
Stern thruster
Hydraulic proportional with hold function + Hydronautica remote

Electricity
12 + 24 + 220V
Shorepower
2 x shore power connection (bow + stern) + Victron Isolation Transformer 3600W
Inverter
Victron Quattro 8000W 200A
Battery charger
Victron Quattro 8000W 200A + Victron small charger
Batteries
12 x 2V battery pack + 4 x 50A 12V starter batteries
